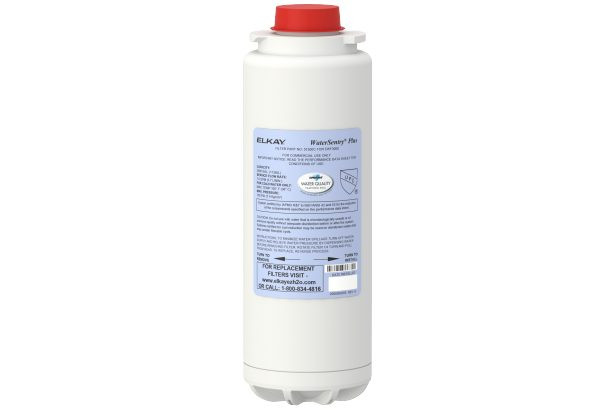

1/4 Turn installation. Automatic inlet shut-off valve that closes when filter is removed. Hands never touch the actual filter media and, therefore, limit the potential for introduction of bacteria. Outer protective wrap. Spun Polypropylene prefilter mesh to prevent large, coarse sediment and particles from entering and clogging filter media. High-grade filter is made with activated carbon and patented ATS lead-removal media. Radial flow-thru design provides more surface area for untreated water while final filter mesh prevents loose carbon from entering water.
Size: 3-1/4” (82.6 mm) O.D. x 12-1/2” (317.5 mm) Length
Water Inlet Connection: 3/8” (9.5 mm) O.D. Tube
Water Out let Connection: 1/ 4” (6.4 mm ) O.D. Tube
Recommended Use Conditions
Filter Capacit y: 3000 gallon
Maximum Flow Rate: 1.5 GPM
Water Temperature: 40- 100°F
Initial Pressure Drop: 2-5 PSI
Maximum Line Pressure: 105 PSI
Minimum Line Pressure: 20 PSI
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
