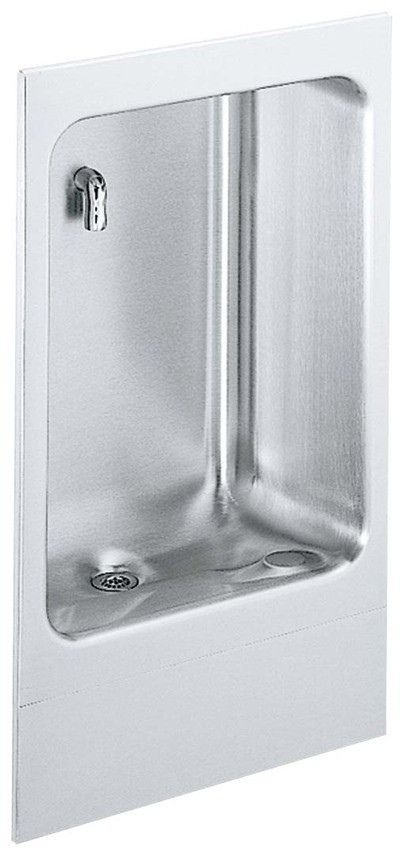

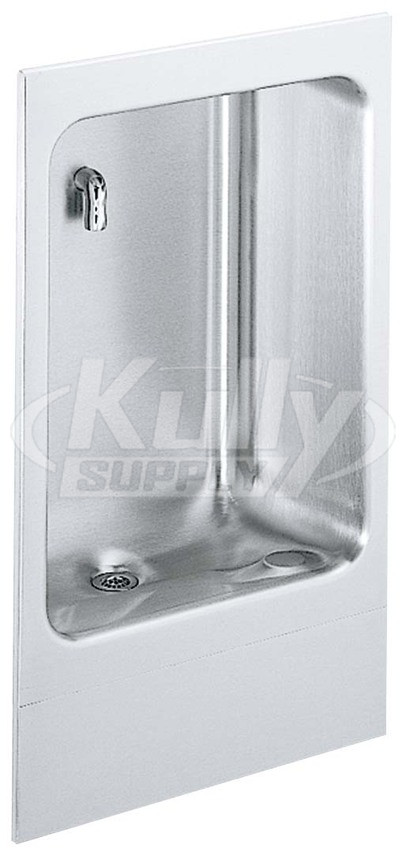

Elkay EDFBC12PBC Fully Recessed Drinking Fountain w/ Cuspidor

GENERAL

18 gauge (1.2mm), type 304, nickel bearing stainless steel wall drinking fountain and cuspidor, designed to meet all sanitary codes. Unit has embossed bubbler pad and built-in stream splitter on drinking fountain side. Finish is hand blended to a lustrous satin finish.

EDFBC212C: Fountain/cuspidor combination furnished complete with Flexi-Guard® safety bubbler, fully assembled front push bar, flow regulator provides constant stream from 20 to 105 psi water pressure and domed strainer. No traps furnished.

NO LEAD DESIGN

THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988. THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) WHEN RIM OF FOUNTAIN IS MOUNTED 34” (864mm) FROM THE FLOOR AND PROPER CLEAR FLOOR SPACE IS PROVIDED.

CONSTRUCTION

Exclusive Flexi-Guard® Safety Bubbler: Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Keyed in location to prevent rotation.

ALSO AVAILABLE

Model EDFBC12PBC: Cuspidor only with pushbar control. Does not include fountain.

ACCESSORIES

MB24 Mounting Box is available as an optional accessory. For the fountain/cuspidor combination model EDFBC212C, two mounting boxes are required.

STANDARDS

This fountain is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953.

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.

• Elkay EDFBC12PBC Fully Recessed Drinking Fountain w/ Cuspidor Spec Sheet
