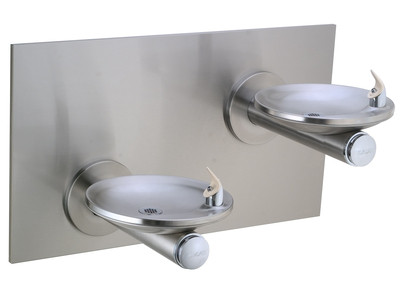

Elkay EDFPBMV117RAC SwirlFlo Bi-Level Drinking Fountain

Elkay EDFPBMV117RAC SwirlFlo Bi-Level Drinking Fountain icon_image_enlarge.png
  • Model #: EDFPBMV117RAC
  • Part #: 157837
  • Manufacturer: Elkay
List Price: $3,047.00
Our Price:
$2,019.68
Qty:

$46.50 Shipping

icon_freight_shipping_help

This is a genuine Elkay EDFPBMV117RAC SwirlFlo Bi-Level Drinking Fountain.

  • Non-Refrigerated
  • Vandal Resistant Bubbler

Need Product Assistance?

Call Us

800-518-5388

-or-

Kully Supply is committed to offering the best product support through our knowledgeable customer service team. If you have any questions, feel free to contact us.

billMeLater

GENERAL

Fully exposed two-level fountain basins are #18 gauge, 300 series stainless steel polished to a lustrous satin finish with high shine outer edge. #16 gauge, 300 series tubular stainless steel support arms incorporate unique recess to be integrated with basin. One fountain positioned lower on the left for wheelchair use. The other positioned on the right at standing height.

Fountains have contoured basin that minimizes splashing. Flexi-Guard® safety bubblers are keyed in location to prevent rotation. Fully functional, vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 psi water pressure.

THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) PROVIDING THE UNIT IS INSTALLED IN AN ALCOVE OR WITH RIGHT WING WALL.

NO LEAD DESIGN

THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.

Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed.

This fountain is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953.

CONSTRUCTION

EDFPBM117RAC two-level fountain furnished complete with Flexi-Guard® fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel and surface mounting plate. No traps are furnished.

ALSO AVAILABLE

Model EDFPBMV117RAC: Includes vandal-resistant bubblers. Heavy duty, one-piece construction, chrome plated brass.

Models EDFPB117RAC and EDFPBV117RAC do not include the surface mounting plate. Designed to mount with MPW200 in-wall mounting plate carrier accessory. ML100 in-wall support legs are optional.

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
View More

Additional Information

Part #

157837

Manufacturer

Elkay

Model #

EDFPBMV117RAC

Is Complete

Yes

GreenSpec

No

ADA Compliant

Yes

Installation Type

Wall Mounted

Freeze Resistant

No

Outdoor Rated

No

Refrigerated

No

Vandal Resistant Bubbler

Yes

Height

41.6875”

Width

38.5”

Depth

18.375”
