Description
GENERAL

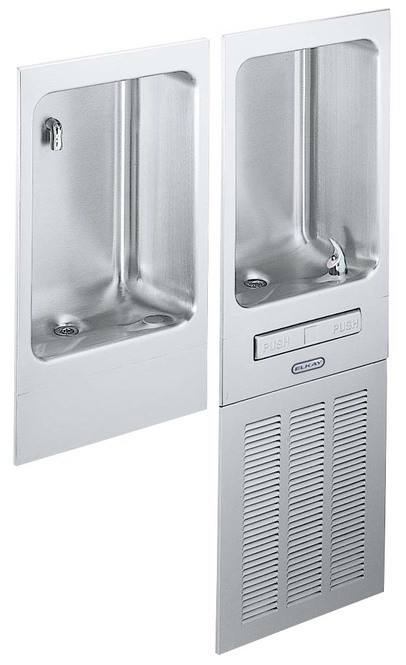

Wall type, fully recessed, electric water cooler and cuspidor combination includes mounting boxes, refrigeration package, louvered grill and fountain only push bar for bubbler stream and cuspidor rinse control. Fountain and cuspidor have contoured basins to minimize splashing. Flexi-Guard® safety bubbler and easy to operate, fully functional stainless steel, vandal-resistant front push bar. Flow regulator provides constant stream from 20 to 105 psi water pressure.
THIS WATER COOLER AND CUSPIDOR COMBINATION COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) PROVIDING THE FLOOR TO RIM HEIGHT IS 34” OR LESS AND PROPER CLEAR FLOOR SPACE IS PROVIDED.
NO LEAD DESIGN
THIS WATER COOLER COMPLIES WITH THE LEAD-FREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler.
COOLING SYSTEM
Motor Compressor: Hermetically sealed, reciprocating type, 115V, 60 Hz single phase. Lubricated for life.
Condenser: Fan cooled. Fan motor is permanently lubricated.
Cooling Unit: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing plastic material.
Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance.
Temperature Control: Enclosed adjustable thermostat is easily accessible by removing front grill panel.
CONSTRUCTION
Fountain Body: One piece #18 gauge stainless steel, type 304. Anti-splash design has Exclusive Cascade basin, tested most splash-resistant, extends 1/2” from finished wall after installation. Fully functional, stainless steel push bar is easy to operate and controls flow to both bubbler and cuspidor.
Cuspidor Body: One piece #18 gauge stainless steel, type 304. Anti-splash design. Extends only 1/2” from finished wall after installation.
Exclusive Flexi-Guard® Safety Bubbler: Innovative design utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Antisweat. Keyed in location to prevent rotation.
Front Panel Grill: Made of type 304 stainless steel polished to a uniform Elkay finish. Removable, louvered ventilating grill encloses refrigeration unit and plumbing.
Wall Mounting Box: MB23A mounting box furnished with water cooler and MB24 mounting box furnished with cuspidor. Mounting boxes allow for flush mounting to finished wall.
Protected by Elkay’s 5 Year Limited Warranty on the refrigeration system of the unit.
Elkay Pressure-Type Water Coolers are designed to operate on 20 psi to 105 psi supply line pressure. If inlet pressure is above 105 psi, a pressure regulator must be installed in the supply line. Any damage caused by reason of connecting this product to supply line pressures lower than 20 psi or higher than 105 psi is not covered by the warranty.
