Features and Benefits

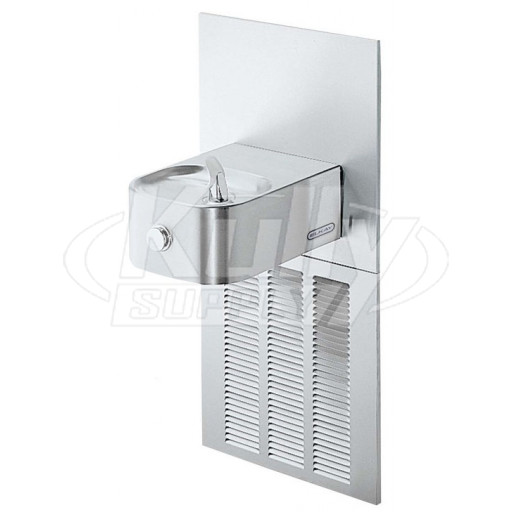

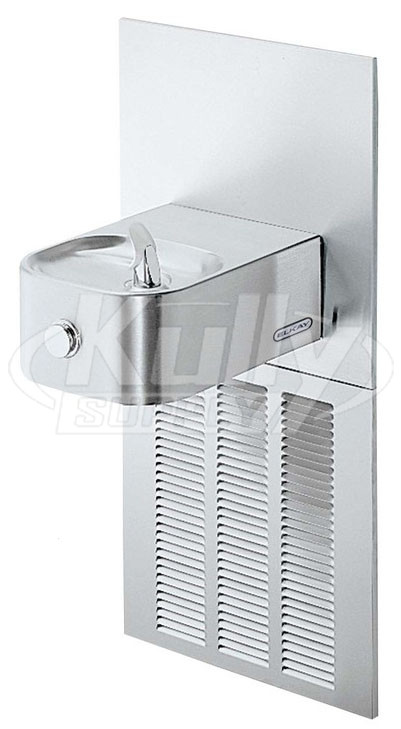

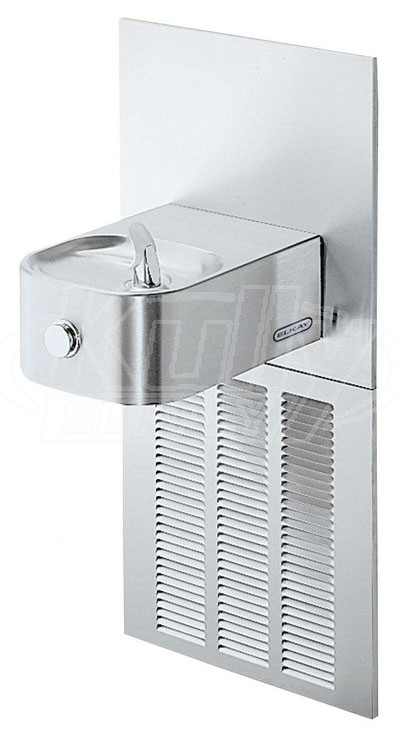

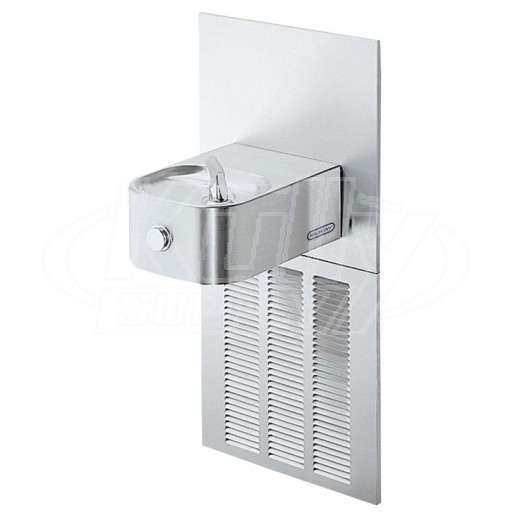

Single station barrier-free stainless steel water cooler has recessed in-the-wall refrigeration system and stainless steel grill. All stainless steel polished to lustrous satin finish with high shined outer edge.
Fountain has contoured basin to minimize splashing, Flexi-Guard® safety bubbler and easy to operate, fully functional vandal-resistant front push button. Flow regulators provide constant stream from 20 to 105 psi water pressure. Vandal-resistant bottom cover plate included.
Energy efficient refrigeration system utilizes a combination tank continuous-tube type evaporator, refrigerant drier, and capillary tube.
ADA Compliant
This Water Cooler complies with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed.
Cooling System
- Motor Compressor: Hermetically sealed, reciprocating type, 115 Volt/60 Hz, single phase. Sealed-in lifetime oil supply.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
- Cooling Unit: Combination tube-tank type. Self cleansing. Tube portion is continuous coil of copper tubing. Tank is stainless steel. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material.
- Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free operation.
- Temperature Control: Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude
Construction
- Fountain Body: #18 gauge, type 304 nickel bearing stainless steel basin polished to a lustrous satin finish with high shined outer edge. Contoured basin offers large strike area to minimize splashing. Fully functional front push button is easy to operate.
- Exclusive Flexi-Guard® Safety Bubbler: Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Bubbler meets UL requirements and all sanitary codes and are keyed in location to prevent rotation.
- Front Panel Grill: Made of type 304 stainless steel, polished to a uniform Elkay satin finish. Removable louvered ventilating grill encloses refrigeration unit and plumbing.
- Drain: LK464 drain and trap assembly included.
PLEASE NOTE – Wall Mounting Frame: MF100 is included with model ERFPM8K. For model ERFP8K, MF100 must be pre-ordered for installation. Frame allows flush mounting finished wall.
Protected by Elkay’s 5 Year Limited Warranty on the refrigeration system of the unit.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
