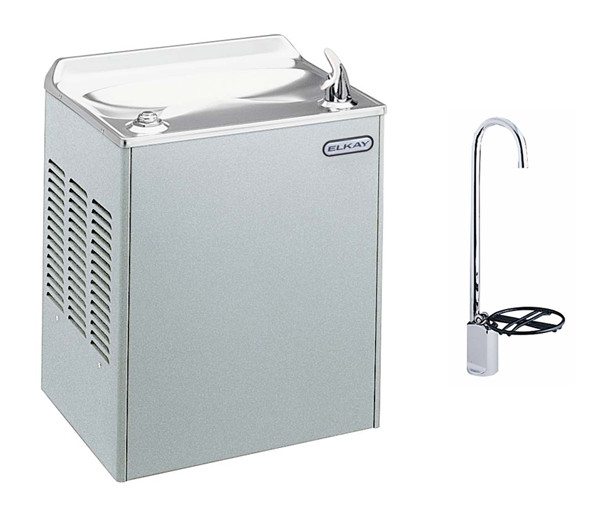

Elkay EWCA8LF1Z Compact Wall Mount Water Cooler w/ LK1114 Glass Filler

Elkay EWCA8LF1Z Compact Wall Mount Water Cooler w/ LK1114 Glass Filler icon_image_enlarge.png
  • Model #: EWCA8LF1Z w/LK1114
  • Part #: 157660
  • Manufacturer: Elkay
List Price: $1,387.00
Our Price:
$895.02
Qty:

$46.50 Shipping

icon_freight_shipping_help

This is a genuine Elkay EWCA8LF1Z Compact Wall Mount Water Cooler w/ LK1114 Glass Filler.

  • Refrigerated: 8GPH
  • Light Gray Granite
  • Non-Filtered
  • LK1114 Glass Filler

Need Product Assistance?

Call Us

800-518-5388

-or-

Kully Supply is committed to offering the best product support through our knowledgeable customer service team. If you have any questions, feel free to contact us.

billMeLater

GENERAL

Models EWCA4, EWCA8 and EWCA14: Self-contained, electric refrigerated, wall hung water cooler. Capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient.

Non-pressurized tank system is standard. Non-pressurized water tank is located after bubbler valve, so that tank is subject to line pressure only when valve button is pressed.

Model EWCDA is non-refrigerated. Same as EWCA4, 8 and 14 without cooling system.

NO LEAD DESIGN

THIS WATER COOLER COMPLIES WITH THE LEAD-FREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.

Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler.

COOLING SYSTEM

Motor Compressor: Hermetically sealed, 115V, 60 Hz single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug.

Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.

Cooling Unit: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing material.

Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free performance.

Temperature Control: Enclosed adjustable thermostat is factory pre-set. Requires no adjustment other than for altitude requirements.

CONSTRUCTION

Fountain Top: One piece stainless steel top, polished to a uniform Elkay bright luster finish. Exclusive Cascade basin, tested most splash-resistant, features multi-level deck design with a built-in vandal-resistant strainer.

Exclusive FIexi-Guard® Safety Bubbler: Innovative design utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Antisweat. Keyed in location to prevent rotation.

Removable Panel: Removable front panel offers easy accessibility to interior.

Color Selection: Models available in Light Gray Granite, Almond, Sandalwood and Stainless Steel panels.

Cabinet: Cabinet allows for flush to wall mounting.

Protected by Elkay’s 5 Year Limited Warranty on the refrigeration system of the unit.

Elkay Pressure-Type Water Coolers are designed to operate on 20 psi to 105 psi supply line pressure. If inlet pressure is above 105 psi, a pressure regulator must be installed in the supply line. Any damage caused by reason of connecting this product to supply line pressures lower than 20 psi or higher than 105 psi is not covered by the warranty.

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
View More

Additional Information

Part #

157660

Manufacturer

Elkay

Model #

EWCA8LF1Z w/LK1114

Is Complete

Yes

GreenSpec

No

ADA Compliant

No

Installation Type

Wall Mounted

Freeze Resistant

No

Outdoor Rated

No

Refrigerated

Yes

Vandal Resistant Bubbler

No

Height

22”

Width

18”

Depth

14.5”
