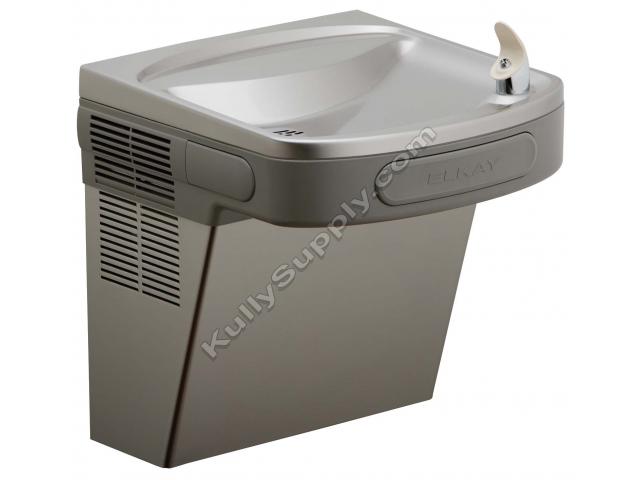

Elkay EZS8L Water Cooler

Elkay EZS8L Water Cooler icon_image_enlarge.png
  • Model #: EZS8L
  • Part #: 102357
  • Manufacturer: Elkay
List Price: $819.00
Our Price:
$471.64
Qty:

$46.50 Shipping

icon_freight_shipping_help

The Elkay EZS8L Water Cooler is Elkay’s most popular water cooler. It features a barrier-free ADA design that meets both adult and child standards. Easy-touch controls are used for simple operation and increased durability.

Need Product Assistance?

Call Us

800-518-5388

-or-

Kully Supply is committed to offering the best product support through our knowledgeable customer service team. If you have any questions, feel free to contact us.

billMeLater

Features

  • No Lead Design water system is free of lead-containing brass parts.
  • Barrier-Free ADA Design meets adult or child ADA standards when properly installed.
  • Extra Deep Basin minimizes splashing and its one-piece construction, with integrated drain, is vandal-resistant and easy to maintain.
  • Easy-Touch Controls for easy operation and increased durability.
  • Flexi-Guard Anti-Microbial Safety Bubbler complements styling of cooler and is keyed into position to prevent rotation.
  • Easy-To-Install Universal Design adapts easily to existing plumbing systems.
  • Light Gray Granite Vinyl Clad Cabinet standard.
  • Impact Resistant Vinyl Coating offers superior durability and performance.

GENERAL

Self-contained, wall hung electric refrigerated water cooler. Chilling capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient.

Elkay EZS8L has self-closing Easy-Touch Controls on front and both right and left sides.

All models have a hooded stream projector with Easy-Touch Controls that require less than 3 pounds of force to activate. Patented* valve with built-in flow regulator provide constant stream from 20 to 105 psi, water pressure. Bubbler orifice fully protected to meet all sanitary codes.

Non-pressurized stainless steel cooling tank is standard. Nonpressurized water tank is located after bubbler valve, so that tank is subject to line pressure only when Easy-Touch Control is pressed.

ADA COMPLIANT

The Elkay EZS8L Water Cooler comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. Also meets the guidelines for children’s environments providing the floor to orifice height is 30” or less and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes.

NO LEAD DESIGN

These Elkay Water Coolers are certified to be lead-free as defined by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler.

These water coolers are certified to ANSI/NSF61.

COOLING SYSTEM

  • Motor Compressor: Hermetically sealed, reciprocating type, 115V, 60 Hz single phase. Sealed-in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug (domestic models).
  • Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
  • Cooling Unit: Combination tube-tank type. Self cleansing. Tube portion is continuous coil of copper tubing. Tank is stainless steel. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self-extinguishing material. Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free operation.
  • Temperature Control: Enclosed adjustable thermostat is factory pre-set. Requires no adjustment other than for altitude requirements. Easily accessible.
  • Cooling Unit: Combination tube-tank type. Self cleansing. Tube portion is continuous coil of copper tubing. Tank is stainless steel. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self-extinguishing material.
  • Refrigerant Control: Refrigerant HFC-134a is controlled by accurately calibrated capillary tube for positively trouble-free operation.
  • Temperature Control: Enclosed adjustable thermostat is factory pre-set. Requires no adjustment other than for altitude requirements. Easily accessible.

CONSTRUCTION

  • Frame: Galvanized structural steel chassis supports refrigeration system and fastens to wall. Provides increased structural integrity and rigidity to cooler.
  • Stainless Steel Basin: One piece polished to a uniform Elkay bright luster finish. Basin has integral drain grid, embossed bubbler pad. No exposed fasteners.
  • Exclusive Flexi-Guard® Safety Bubbler: Innovative design utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Keyed in location to prevent rotation.
  • Upper Shroud: Contoured shock-absorbing, provides additional protection against accidental injury. No exposed fasteners.
  • Lower Shroud: One piece easy to remove and replace. Allows access to internal components from three sides.
  • Cabinet: Cabinet design allows for flush to wall mounting. No recess space is required.
  • Color Selection: Unless otherwise specified cabinet is two-tone gray on upper shroud with textured gray lower shroud. Stainless Steel lower shroud available at extra cost.

5 YEAR LIMITED WARRANTY on the refrigeration system of the unit. Electrical components and water system are warranted for 12 months from date of installation. Sample Certificate available on request.

Elkay Pressure-Type Water Coolers are designed to operate on 20 psi to 105 psi supply line pressure. If inlet pressure is above 105 psi, a pressure regulator must be installed in the supply line. Any damage caused by reason of connecting this product to supply line pressures lower than 20 psi or higher than 105 psi is not covered by the warranty.

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
View More

Additional Information

Part #

102357

Manufacturer

Elkay

Model #

EZS8L

Is Complete

Yes

GreenSpec

No

ADA Compliant

Yes

Installation Type

Wall Mounted

Freeze Resistant

No

Outdoor Rated

No

Refrigerated

Yes

Vandal Resistant Bubbler

No
