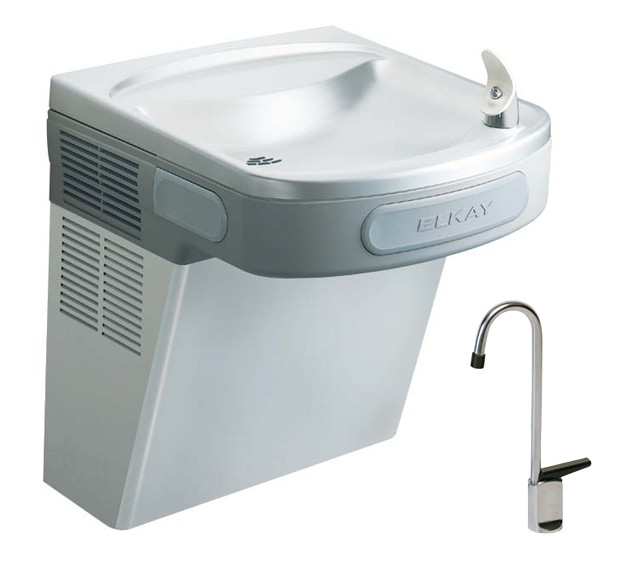

Self-contained, wall hung electric refrigerated water cooler w/ LK1110 glass filler
Chilling capacity of 50°F drinking water, based upon 80°F inlet water and 90°F ambient
Have self-closing Easy-Touch Controls on front and both right and left sides
Elkay Water Coolers comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. The water cooler is compliant if installed in an alcove and is also compliant when mounted on an exposed wall if a wing wall is located on the left side or if LKAPREZL apron is installed under upper unit. Also meets the guidelines for children’s environments providing the floor to orifice height is 30” or less on the lower unit and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes.
NO LEAD DESIGN
Elkay Water Coolers are certified to be lead-free as defined by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler. These water coolers are certified to ANSI/NSF61.
Features and Benefits
Easy-Touch pushbar activation
Extra deep basin minimizes splashing; with integral drain
Available with Flexi-Guard® Safety bubbler or Vandal-resistantt bubbler (includes “VR” code in model no. see chart below)
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
Finish options: Impact-resistant vinyl coating or stainless steel wrapper
Rated for Indoor use
Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
Cooling Unit: Combination tube-tank type. Self-cleaning. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.
