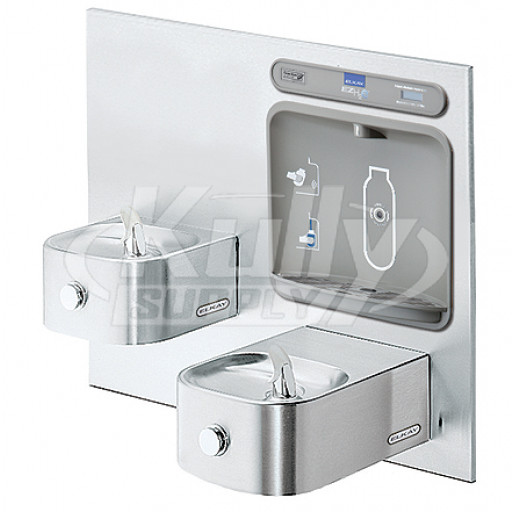

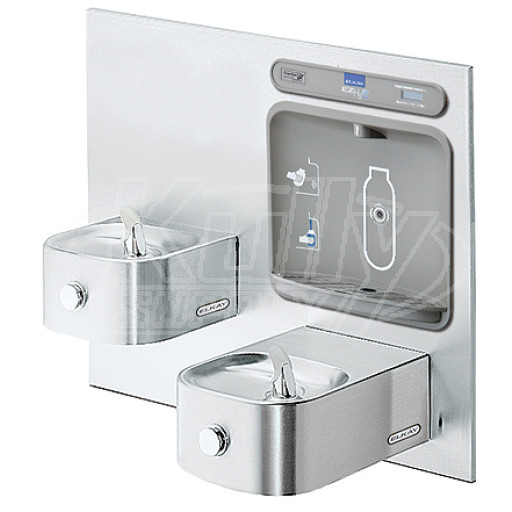

Elkay EZWS-EDFP217K Soft Sides Intergral Bottle Filling Station (Non-Filtered)

Elkay EZWS-EDFP217K Soft Sides Intergral Bottle Filling Station (Non-Filtered) icon_image_enlarge.png
  • Model #: EZWS-EDFP217K
  • Part #: 162552
  • Manufacturer: Elkay

$46.50 Shipping


This is a genuine Elkay EZWS-EDFP217K Soft Sides Intergral Bottle Filling Station (Non-Filtered).

  • Non-Filtered
  • Non-Refrigerated

Need Product Assistance?

Call Us



Kully Supply is committed to offering the best product support through our knowledgeable customer service team. If you have any questions, feel free to contact us.


Architectural fountains with integral bottle filling station. EZWS-EDFP217K shall deliver non-chilled drinking water unless connected to a remote water chiller. Units shall be stainless steel construction with plastic ABS alcove. Sensor-activation with an auto 20-second shut-off timer. Shall include Green Ticker™ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.5 gpm flow rate with laminar flow to minimize splashing and 1.1 gpm flow rate when connected to a remote water chiller. Shall include integrated silver ion anti-microbial protection in key areas. Unit shall meet ADA guidelines. Unit shall be lead-free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120.


  • No-touch, sensor-activated bottle filler
  • Auto 20-second shut-off
  • Integrated Silver Ion Anti-microbial Protection in key areas
  • Quick Fill Rate: 1.5 gpm
  • Laminar Flow provides minimal splash
  • Real Drain System eliminates standing water


EZWS-EDFP217K two-level fountain furnished complete with Flexi-Guard® fully assembled with front push button, flow regulator (120 to 105 psi), stainless steel back panel. No traps are furnished.

  • Stainless Steel bottle filler construction with ABS plastic alcove
  • Furnished with wall mounting frame constructed of galvanized steel
  • Mounting can be ordered separately for pre-install

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
