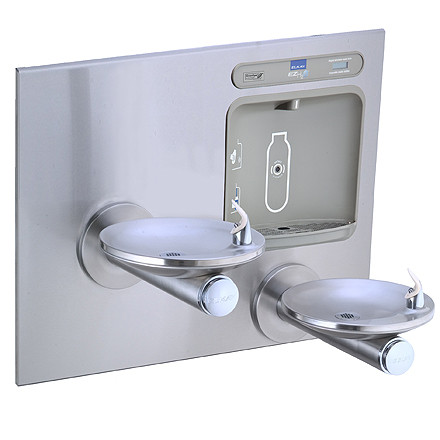

Elkay EZWS-EDFPBM117K SwirlFlo Integral Bottle Filling Station (Non-Filtered)

Elkay EZWS-EDFPBM117K SwirlFlo Integral Bottle Filling Station (Non-Filtered) icon_image_enlarge.png
  • Model #: EZWS-EDFPBM117K
  • Part #: 162548
  • Manufacturer: Elkay

$46.50 Shipping


This is a genuine Elkay EZWS-EDFPBM117K SwirlFlo Integral Bottle Filling Station (Non-Filtered).

  • Non-Filtered
  • Non-Refrigerated

Need Product Assistance?

Call Us



Kully Supply is committed to offering the best product support through our knowledgeable customer service team. If you have any questions, feel free to contact us.


Architectural fountains with integral bottle filling station. EZWS-EDFPBM117K shall deliver non-chilled drinking water unless connected to a remote water chiller. Units shall be stainless steel construction with plastic ABS alcove. Sensor-activation with an auto 20-second shut-off timer. Shall include Green Tickerâ„¢ displaying count of plastic bottles saved from waste. Bottle filler shall provide 1.5 gpm flow rate with laminar flow to minimize splashing and 1.1 gpm flow rate when connected to a remote water chiller. Shall include integrated silver ion anti-microbial protection in key areas. Unit shall meet ADA guidelines. Unit shall be lead-free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120.


  • No-touch, sensor-activated bottle filler
  • Auto 20-second shut-off
  • Integrated Silver Ion Anti-microbial Protection in key areas
  • Quick Fill Rate: 1.5 gpm
  • Laminar Flow provides minimal splash
  • Real Drain System eliminates standing water
  • Visual User Interface display includes: Innovative Green Tickerâ„¢ counts bottles saved from waste


Fully exposed two-level fountain basins are #18 gauge. 300 series stainless steel polished to a lustrous satin finish with high shine outer edge. #16 gauge, 300 series tubular stainless steel support arms incorporate unique recess to be integrated with basin. One fountain positioned lower on the right for wheel-chair use. The other positioned on the left at standing height.

Fountains have contoured basin that minimizes splashing. Flexi-Guard Safety bubblers are keyed in location to prevent rotation. Filly functional, vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 PSI water pressure.

Manufacturer Info

Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
