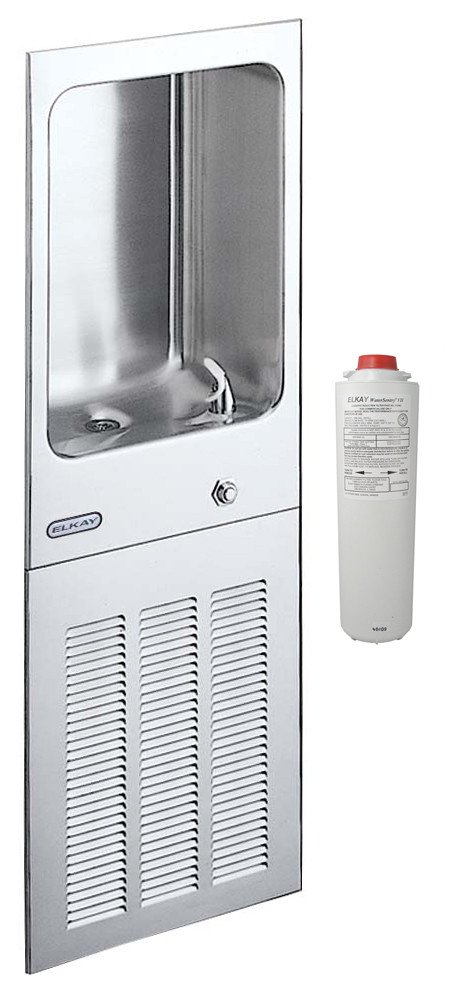

Wall type, fully recessed electric refrigerated water cooler with stainless steel louvered ventilating grill
Unit furnished with hermetically sealed tube-tank cooling unit in undersection. Cooling unit removable without disturbing electrical or drain connections
Condenser, air cooled by fan
Plumbing and electrical connections are concealed
Entire unit does not extend more than 1/2” from wall surface
FlexiGuard safety bubbler
Control push button located on front panel below stream projector
Flow regulator provides constant stream from 20 to 105 psi water pressure
NO LEAD DESIGN
This water cooler complies with the lead-free definition in the safe drinking water act of 1986 and lead contamination control act of 1988.
Motor Compressor: Hermetically sealed, reciprocating type, 115V, 60 Hz single phase. Lubricated for life.
Condenser: Fan cooled. Fan motor is permanently lubricated.
Cooling Unit: Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam which meets Underwriters Laboratories Inc. requirements for self extinguishing plastic material.
Refrigerant Control: Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively troublefree performance.
Temperature Control: Enclosed adjustable thermostat is easily accessible by removing front grill panel.
Fountain Top: One piece #16 gauge stainless steel, type 304. Anti-splash design has Exclusive Cascade basin, tested most splash-resistant. Fountain has 1-3/4” coved corners. Exposed surfaces polished to a uniform Elkay luster finish.
Stream Projector: Control push button operated, with an inline flow regulator from 20 psi to 105 psi. Stream projector with protective hood meets all sanitary codes.
Front Panel Grill: Made of type 304, stainless steel, polished to a uniform Elkay finish. Removable louvered ventilating grill encloses refrigeration unit and plumbing.
Wall Mounting Box: MB23AL mounting box furnished with each unit. Box allows flush mounting to finished wall, plumbing and electrical service holes are pre-punched on both right and left side to facilitate installation.
