Description
GENERAL

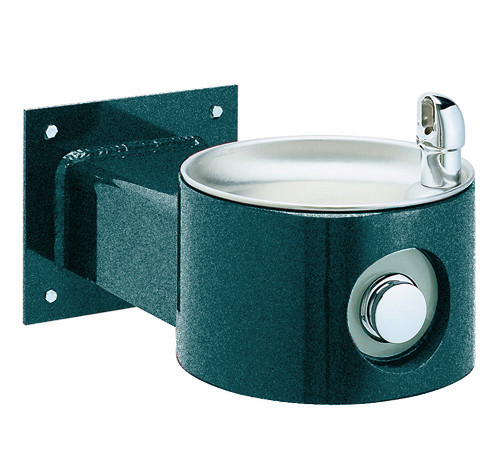

Wall-mounted steel fountain with textured powder coat finish and E-Coat immersion for year-round beauty with minimum maintenance. The E-Coat immersion process coats the outside and inside of the fountain for the ultimate in corrosion protection. Contour-formed stainless steel basin with rounded corners and edges reduces splatter, insures proper drainage and prevents standing waste water. Designed to be easily accessible to both physically challenged and able-bodied individuals. Ideally suited for installation in public areas. Model meets state and federal requirements as defined by the Americans with Disabilities Act.
NO LEAD DESIGN
THIS DRINKING FOUNTAIN COMPLIES WITH THE LEAD-FREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed.
CONSTRUCTION
Freeze-Resistant Valve System: Freeze-resistant system features box that installs behind non-freezing wall for housing water connection from the stop to the strainer.
Bubbler: Vandal-resistant bubbler is one-piece, chromeplated, with integral hood guard design to prevent contamination from other users, airborne deposits and tampering.
Pushbutton Actuation Mechanism: Self-closing, vandalresistant pushbutton does not require grasping or twisting.
Automatic Stream Height Regulator: Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.
Inlet Strainer: Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway.
Water Inlet: 3/8” O.D. Tubing into freeze-resistant box.
Drain Outlet: 1-1/4” waste outlet located in freeze-resistant valve system.
SUGGESTED SPECIFICATIONS
Fountain shall include pushbutton on the front. Shall include contoured-formed basin to eliminate splashing and standing water, and shall have rounded corners and edges. Projector shall be chrome-plated vandal-resistant type with integral hood guard and anti-squirt feature. Fountain shall comply with ANSI 117:1 and ADA for visual and motion disabilities. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61, and the Safe Drinking Water Act.
