Description
GENERAL

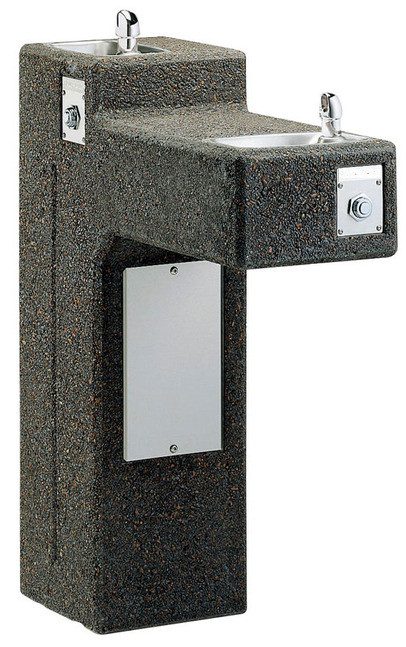

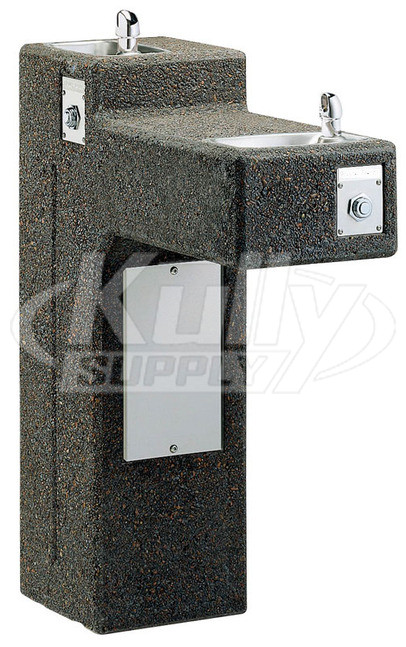

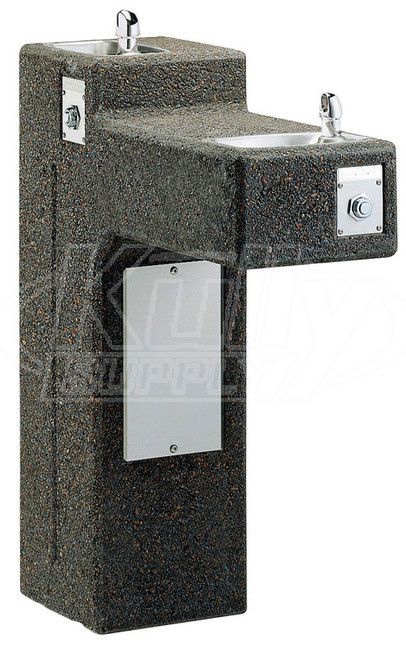

Pedestal, weather-resistant exposed stone aggregate fountain for year-round beauty with minimum maintenance. Contour-formed bi-level basins with rounded corners and edges reduces splatter, insures proper drainage and prevents standing waste water. Designed to be easily accessible to both physically challenged and able-bodied individuals. Ideally suited for installation in public areas. Model meets state and federal requirements as defined by the Americans with Disabilities Act.
NO LEAD DESIGN
THIS DRINKING FOUNTAIN COMPLIESWITH THE LEAD-FREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed.
CONSTRUCTION
Freeze-Resistant Valve System: Freeze-resistant valve designed for ground installation 18” below the frost line. 60” of access tubing provided with the freeze-resistant valve system. The length of the tubing can be reduced in the field for lesser frost depths.
Bubbler: Vandal-resistant, bubblers are one-piece, chromeplated with integral hood guard design to prevent contamination from other users, airborne deposits and tampering.
Pushbutton Actuation Mechanism: Self-closing, vandalresistant pushbuttons do not require grasping or twisting.
Automatic Stream Height Regulator: Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.
Water Inlet: 3/8” female NPT fitting.
Drain Outlet: Drain requirements are detailed in owner’s manual.
Access Panel: Manufactured of heavy-gauge steel with vandal-resistant screws. Provides access for easy hook-up of all plumbing connections.
SUGGESTED SPECIFICATIONS
Fountain shall include pushbuttons on the front. Shall include contoured-formed basins to eliminate splashing and standing water, and shall have rounded corners and edges. Projectors shall be chrome-plated vandal-resistant type with integral hood guard and anti-squirt feature. Fountain shall comply with ANSI 117:1 and ADA for visual and motion disabilities. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61, and the Safe Drinking Water Act.
