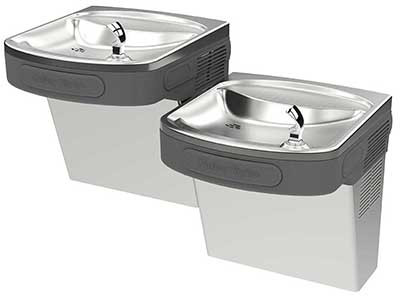

Halsey Taylor HTVZ8BLPV-NF Dual Drinking Fountain

Halsey Taylor HTVZ8BLPV-NF Dual Drinking Fountain

Item #: 164381
|
Model: HTVZ8BLPV-NF
|
Manufacturer: Halsey Taylor

NOTE: If you are replacing an HTV model it is recommended that you also get part #174227

Refrigerated: 8GPH
Platinum Vinyl

This item is no longer available. The following item is a replacement for this item:

$1,009.40

Product Description
Specifications
Documents
Reviews (0)
Questions (2)

Product Description

Description

Features

Easy-Touch pushbar activation
Extra deep basin minimizes splashing; with integral drain
Exclusive one-piece, Chrome-plated two-stream Double Bubbler™ with non-removable anti-squirt feature and integral hood. It’s integral hood insures a satisfying drink of water
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
Versatile cooler design allows units to be installed either left-hand high and right-hand low or left-low and right high

GENERAL

Self-contained, electric refrigerated wall-mounted non-filtered water cooler easily accessible to physically challenged individuals. HTVZ8BL delivers 8 gph of 50°F drinking water at 90°F ambient air and 80°F inlet water.

Exclusive one-piece, Chrome-plated two-stream Double Bubbler™ with non-removable anti-squirt feature and integral hood. Automatic stream height regulator is located inside unit to prevent tampering. Includes self-closing, light touch front and side pushbar actuation with raised letters for the visually impaired. Type 300 series stainless steel cooler top, with satin finish resists stains. Contoured to insure proper drainage.

CERTIFICATIONS

The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61 and 372, UL 399 and CAN/CSA 22.2 No. 120.

COOLING SYSTEM

Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
Cooling Unit: Tube type. Self-cleansing. Continuous copper tubing which is fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.

CONSTRUCTION

Stainless Steel basin with integral drain
Galvanized structural steel cooler chassis provides structural integrity
Stainless Steel bottle filler wrapper with ABS plastic alcove
Cooler cabinet available as Platinum Vinyl Clad Steel or Stainless Steel (additional cost) construction
Chrome-plated two-stream Double Bubbler™ with non-removable anti-squirt feature and integral hood.

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.

Specifications Documents Reviews (0) Questions (2)

Questions:

vote

Q: How do I access the p-traps to unclog them?

Answer

Posted on Tuesday, March 28, 2017 on product Halsey Taylor HTVZ8BLPV-NF Dual Drinking Fountain

0
vote

A:
To access the P-trap follow these 3 simple steps.

1. There are 4 screws on the bottom of the Drinking Fountain. Loosen and remove all four screws.

2. Now the entire panel that wraps around the front and sides of the drinking fountain will be loose. Gently pull the bottom of the panel out, and as you tip it away from the drinking fountain you will be able to release the top of the panel from the fountain.

3. You will now have clear access to the p-trap.

To re-install the panel, simply follow these panel removal instructions in reverse order.

If you have any other questions our experts are here to help! Call or text 800-518-5388

Posted by Kully Supply on Tuesday, March 28, 2017

vote

Q: How do I access the p-traps to unclog them?

Answer

Posted on Friday, March 10, 2017 on product Halsey Taylor HTVZ8BLPV-NF Dual Drinking Fountain

0
vote

A: To access the P-trap follow these 3 simple steps. 1. There are 4 screws on the bottom of the Drinking Fountain. Loosen and remove all four screws. 2. Now the entire panel that wraps around the front and sides of the drinking fountain will be loose. Gently pull the bottom of the panel out, and as you tip it away from the drinking fountain you will be able to release the top of the panel from the fountain. 3. You will now have clear access to the p-trap. To re-install the panel, simply follow these panel removal instructions in reverse order. If you have any other questions our experts are here to help! Call or text 800-518-5388

Posted by Kully Supply on Friday, March 10, 2017
