Description
General

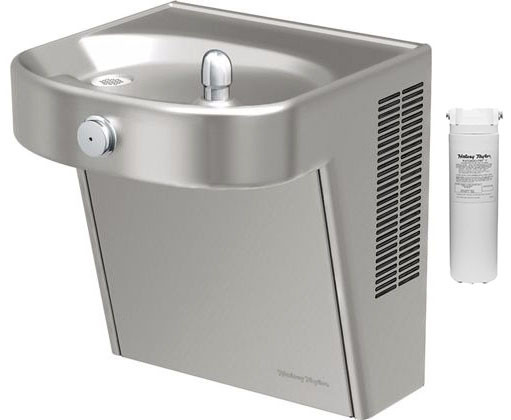

Self-contained, heavy-duty, vandal-resistant water cooler. Shall include 14 gauge stainless steel welded construction for extreme tamper-resistance and curved profile for safety. Front pushbutton activation must be vandal-resistant and not easily removed without special tools. Shall include vandal-resistant StreamSaver™ bubbler and integral drain in basin. Shall include louvered screens with holes sized to prevent easy tampering. Shall include etched name on front. Models HVR8HD shall deliver 8 GPH of 50°F drinking water at 90°F ambient and 80°F inlet water. Model HVRHD-LRWF shall deliver nonchilled drinking water. Unit shall meet ADA guidelines. Unit shall be lead-free design which is certified to NSF/ANSI 61 and 372 and meets Federal and State low-lead requirements. Unit shall be certified to UL399 and CAN/CSA 22.2 No. 120.
Features and Benefits
- Ideal for applications prone to tampering such as prisons and educational facilities with curved profile offering a safe and unobtrusive design
- One-piece 14 gauge stainless steel heavy-duty welded body includes basin with integral drain and side panels; no fasteners
- Gap-free panel joins to eliminate tamper access points
- Durable satin finish that resists stains and corrosion
- Vandal-resistant, self-closing pushbutton which requires tooling to prevent easy removal. Meets ADA activation force guidelines
- Vandal-resistant, heavy-duty one-piece drain formed into basin
- Vandal-resistant, heavy-duty, one-piece StreamSaver™ water-efficient bubbler.
- WaterSentry® VII 1500-gallon capacity Filtration System, certified to NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & Odor)
- Rated for indoor use
WATER INLET – 3/8” O.D. Tubing.
DRAIN OUTLET – 1-1/4” tube outlet for 1-1/4” slip joint connection. Trap and service stop not included.
Cooling System
- Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
- Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
- Cooling Unit: Combination tube-tank type. Self-cleaning. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam that meets UL requirements for self-extinguishing material.
- Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
- Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.
Construction
- Frame: Galvanized structural steel chassis supports cooler housing
- Housing: Heavy-duty 14 gauge stainless steel cabinet with front access panel and integral basin
- Screened vents: Perforated vent screens prevent objects from being inserted into cooler
- Vandal-resistant StreamSaver™ Bubbler: One-piece, heavy-duty, solid construction. Reduces the flow of water by nearly 40% * but maintains a steady, satisfying water stream. Keyed into position to prevent rotation.
- Vandal-resistant Drain: Heavy-duty, one-piece construction
- Vandal-resistant Pushbutton: Heavy-duty, self-closing, easy to operate. Allows front access stream height adjustment.
- Note – Flow regulator provides constant stream from 20 to105 psi water pressure.
- Over average market performance.
Warranty
5 year limited warranty on the unit’s refrigeration system. Electrical components and water system are warranted for 12 months from date of installation or 18 months from factory shipment, whichever date falls first.
