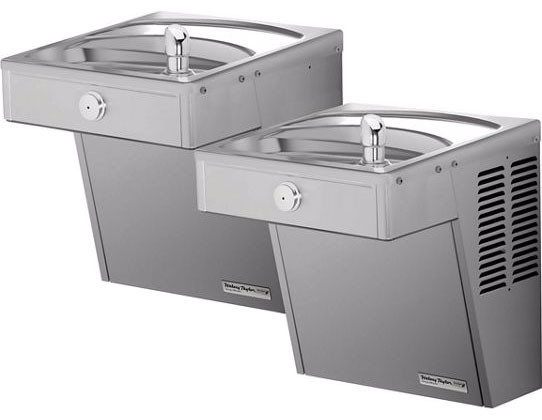

Halsey Taylor HVRBL-L/R ADA Non-Refrigerated Drinking Fountain

Features and Benefits

• Stainless steel satin finish resists stains and corrosion.
• U.L. listed for indoor and outdoor service.
• Can be installed to meet adult or child ADA
• Chrome-plated vandal-resistant bubbler
• Vandal-resistant pushbutton does not require grasping or twisting
• Vandal-resistant pinned torx screws
• Optional louver screens discourage tampering
• Ideal for schools, stadiums, recreations facilities, golf courses, and other rigorous, high-traffic applications

Cabinet

Stainless steel panels resist wear and corrosion. Durable Satin Finish helps hide water spots and fingerprints.

Cooler Top

Non-corrosive stainless steel cooler top, number 300 series with satin finish resists stains and corrosion and is easy to maintain. Anti-splash ridge reduces splatter. Contoured to insure proper drainage.

Bubbler

Vandal-resistant bubbler is one-piece, chrome-plated, with integral hood guard design to prevent contamination from other users, airborne deposits and tampering.

Push Button Actuation Mechanism

Self-closing, vandal-resistant pushbutton does not require grasping or twisting.

Automatic Stream Height Regulator

Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.

Inlet Strainer

Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway.

Temperature Control

Positive sensing thermostat for controlling temperature of storage tank water. Factory set at 50° F Adjustable ± 5° F.

Storage Tank

Stainless steel evaporator/storage tank for long life. Waterways are certified to NSF/ANSI 61, far exceeding the requirements of the Safe Drinking Water Act.

Refridgeration System

Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and fan cooled copper/aluminum condenser with selflubricated bearing. System uses R134A refrigerant. Protected by Halsey Taylor’s Limited 5 Year Warranty.

Ventilation

Insure proper ventilation by maintaining 6” (152mm) minimum clearance from cabinet louvers to wall.

Suggested Specifications

Shall deliver 7.8 GPH of 50° F water at 90° F ambient and 80° F inlet water. Shall have stainless steel basin with removable drain strainer. Bubbler shall be one-piece, vandalresistant type. Separate valve and automatic stream regulator shall be mounted within cabinet. Refrigeration system shall employ high efficiency, positive start compressor using R134A, evaporator/tank with totally encapsulated insulation and be controlled by positive sensing thermostat. Cooler shall comply with ANSI 117:1 and ADA for visual and motion disabilities. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61, and the Safe Drinking Water Act. Unit complies with ARI Standard 1010.

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.

• Halsey Taylor HVRBL-L/R ADA Spec Sheet

• Halsey Taylor HVRBL/LR Front CAD Drawing
• Halsey Taylor HVRBL/LR Side CAD Drawing
• Halsey Taylor HVRBL/LR Top CAD Drawing
