Description
General

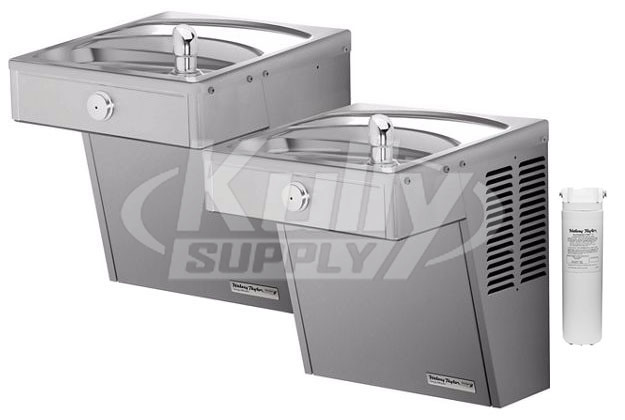

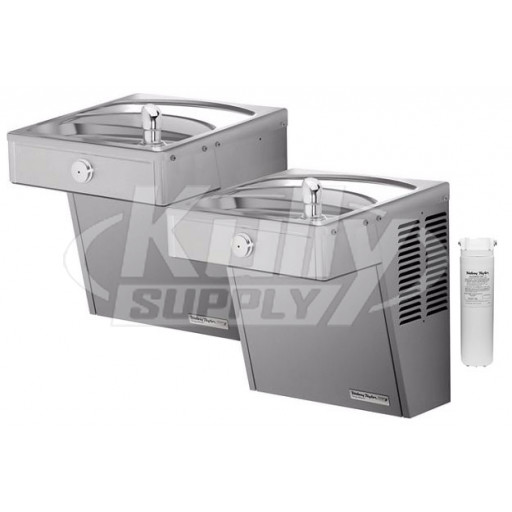

GreenSpec® Listed, energy and water efficient model. Self-contained, electric, refrigerated bi-level wall-mounted water cooler designed to be easily accessible to physically challenged individuals. When properly installed, unit on right side meets state and federal requirements as defined by the Americans with Disabilities Act for both children or adults. Unit is UL listed for indoor and outdoor service.
Features and Benefits
- Cabinet: Stainless steel panels resist wear and corrosion. Durable satin finish helps hide water spots and fingerprints.
- Cooler Top: Non-corrosive stainless steel cooler top, number 300 series with satin finish resists stains and corrosion and is easy to maintain. Anti-splash ridge reduces splatter. Contoured to insure proper drainage.
- Water Conservation Bubbler: Designed to reduce water usage while still delivering a satisfying stream. Vandal-resistant bubbler is one-piece, chrome-plated, with integral hood guard design to prevent contamination from other users, airborne deposits and tampering.
- Pushbutton Actuation Mechanism: Self-closing, vandal-resistant pushbutton does not require grasping or twisting.
- Automatic Stream Height Regulator:* Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.
- Inlet Strainer: Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway.
- Temperature Control: Positive sensing thermostat for controlling temperature of storage tank water. Factory set at 50° F Adjustable ± 5° F.
- Storage Tank: Stainless steel evaporator/storage tank for long life. Waterways are certified to NSF/ANSI 61, far exceeding the requirements of the Safe Drinking Water Act.
Refrigeration System
High-Efficiency, hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and self lubricated fan cools copper/aluminum condenser. System uses R134A refrigerant. Protected by Halsey Taylor’s Limited 5 Year Warranty.
- Ventilation: Insure proper ventilation by maintaining 6” minimum clearance from cabinet louvers to wall.
Suggested Specifications
Shall be GreenSpec® Listed, vandal resistant, self-contained bi-level electric refrigerated water cooler that shall deliver 8.0 GPH of 50º F water at 90º F ambient and 80º F inlet water. Shall have stainless steel basin with removable drain strainer. Bubbler shall be one-piece, lower-flow, vandal resistant. Separate valve and automatic stream regulator shall be mounted within cabinet. Refrigeration system shall employ high-efficiency, positive start compressor using R134A, stainless steel tank with optimized heat transfer and totally encapsulated insulation and be controlled by positive sensing thermostat. Unit shall comply with ANSI 117.1 and ADA for visual and motion disabilities. Unit shall be listed for indoor and outdoor service. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61 and the Safe Water Drinking Act. Unit complies with ARI Standard 1010.
Manufacturer Info
Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
