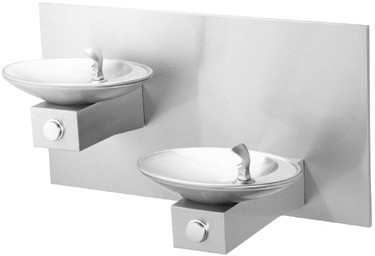

Halsey Taylor OVL-II SEBP FR Non-Refrigerated Drinking Fountain

Features and Benefits

• Exclusive Halsey Taylor Double Bubbler
• Standard finish is satin finish stainless steel
• Automatic stream regulator
• Available with Galaxy Grey and Black Onyx Marblyte basins
• Meets requirements of ADA
• Freeze-resistant valve

General Information

Two oval shape fountains, one-piece, non-corrosive stainless steel with brushed satin finish. Contour-formed basins with rounded corners and edges reduces splatter, insures proper drainage and prevents standing waste water. Oval fountain shape requires less neck extension and bending for the wheel chair user. Designed to be easily accessible to both physically challenged and able-bodied individuals. Ideally suited for installation in public areas. Model meets state and federal requirements as defined by the Americans with Disabilities Act.

Freeze-Resistant Valve System

Freeze-resistant system features box that installs behind non-freezing wall for housing water connection from the stop to the strainer.

Bubbler

Exclusive one-piece, chrome-plated two-stream mound-building bubblers with non-removable anti-squirt feature and integral hood insures a satisfying drink of water.

Vandal-Resistant Pushbutton

Self-closing, vandal-resistant pushbutton does not require grasping or twisting.

Panel

Constructed of stainless steel, number 300 series with satin finish.

Automatic Stream Height Regulator

Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.

Inlet Strainer

Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway.

Water Inlet

3/8” O.D. Tubing into freeze-resistant box.

Drain Outlet

1-1/4” waste outlet located in freeze-resistant valve system.

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
