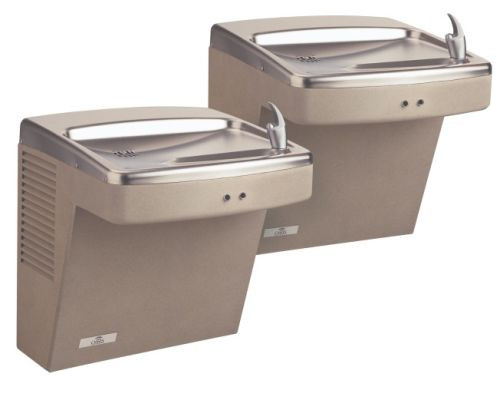

Oasis P8ACSLEE Bi-Level Sensor-Operated VersaCooler II Water Cooler

Features and Benefits

• Sensor Equipped for Automatic Operation. Water Flow Stops After 30 seconds if User Does Not Move Away.
• Built-in 100 Micron Strainer Stops Particles Before They Enter the Waterway
• ADA Compliant for Both Adult or Child When Properly Installed
• Waterways are Lead-Free in Materials and Construction
• Stainless Steel Top
• Flexible Bubbler Guard
• Heavy Duty Galvanized Steel Frame
• High Efficiency Cooling Tank and Coil
• Refrigerant R-134a
• ANSI/NSF 61
• External Stream Height Adjustment
• Split Level is Available in Standard or Reversed
• Sandstone Powder Coat Finish Standard. Optional Brushed Stainless Steel, Regency Bronze and Powder Coat in Various Colors.
• Four Push Pad Activation

Model

P8ACSLEE delivers 8.0 gallons of chilled drinking water per hour. The infrared sensor produces a light beam that is reflected off the user to automatically start water flowing. Not even a touch is needed on lower unit. If user does not move away within 30 seconds, water shuts off automatically. This model satisfies CABO/ANSI A117.1. When accessory apron is used on the upper unit, this cooler will comply with ADA guidelines when properly installed. Apron is not required when installed in an alcove or if a wing wall is installed on the right side for a right high unit or the left side for a left high unit. Model also meets guidelines for children’s accessibility providing the floor to orifice height is 30 inches and proper clear floor space is provided for frontal approach.

Finishes

• Standard cabinet finish: Sandstone powder coated paint
• Optional finishes at additional cost: Stainless Steel, Regency Bronze, and optional powder coated finishes

Options (at additional cost)

• Glass Fillers (factory installed)
• Push Handle (029603-004)
• Push Back (029603-005)
• Push Down (029603-006)
• Apron for upper unit
• Stainless Steel bubbler

Powder Coated Finish Warranty (Continental limits of the United States and Canada): Three years on the powder coat finish provided that the water cooler has not been subjected to abuse, misuse or alteration.

Limited 5-Year Warranty (Continental limits of the United States and Canada): Five years on the sealed refrigeration system and most component parts. Detailed warranty certificate enclosed with each water cooler; sample available upon request.

Export Warranty: One year on component parts. Detailed warranty certificate enclosed with each drinking fountain; sample copy available upon request.
