Elkay Drinking Fountain Parts Breakdowns

Where do I find my model number?

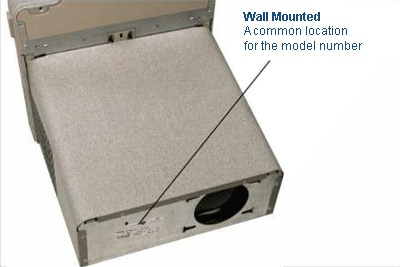

  • Wall Mounted Drinking Fountains or Water Coolers: model number typically located on the bottom (click to view).

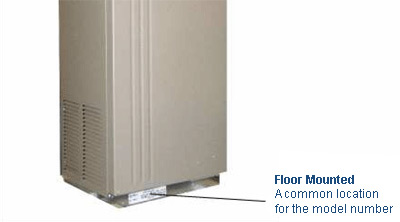

  • Floor Mounted Drinking Fountains or Water Coolers: model number typically located on the base (click to view).

Generally, for these models, most parts are the same. However, the last letter(s) of the model number can indicate different versions based on the release date and/or different electrical components.


Most Common Parts Breakdowns

All Models




  • Page 1

    Elkay LZS8L Breakdown

    Model #: LZS8L (duplicate)

    Exploded Parts Diagram for Model Numbers:

    • EZF(S)4*1C
    • EZF(S)8*1C
    • EZF(S)VR8*1C
    • EZF(S)8*2CJO
    • EZF(S)8*2CJO
    • EZF(S)D*C
    • LZF(S)8*1C
    • LZF(S)VR8*1C
    • LZF(S)8*3CJO
    • LZF(S)8*2CJO
    • LZF(S)D*C
    Learn More

  • Page 1

    Elkay EHF-8-1 Breakdown

    • EHF-8-1
    • EHFS-8-1
    • EWCF-8-1
    • EWCFS-8-1
    • TWCF-8-1
    • TWCFS-8-1
    Learn More
