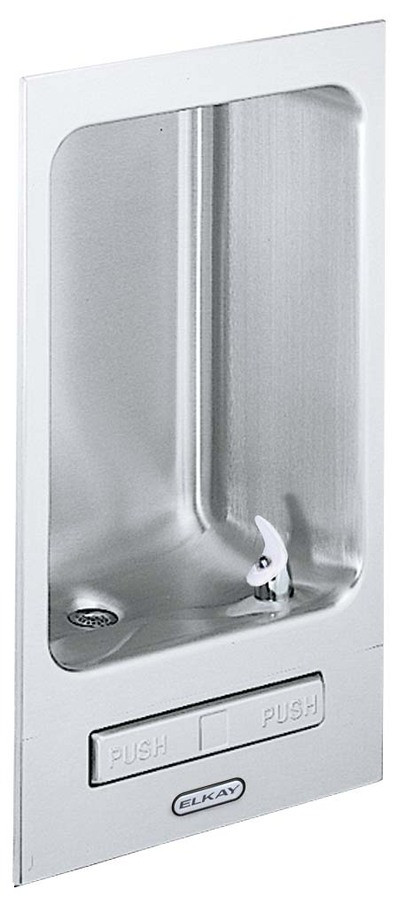

Elkay EDFB12FPK Freeze Resistant Recessed Drinking Fountain

GENERAL

#18 gauge, type 304, nickel bearing stainless steel wall drinking fountain designed to meet all sanitary codes. Unit has embossed bubbler pad and built in stream splitter. Finish is hand blended to a lustrous satin finish.

EDFB12C: Furnished complete with Flexi-Guard® safety bubbler, fully assembled front push bar, flow regulator provides constant stream from 20 to 105 psi water pressure, and domed strainer. No trap furnished.

THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.

Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed.

THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) WHEN RIM OF FOUNTAIN IS MOUNTED 34” FROM THE FLOOR OR LESS AND PROPER CLEAR FLOOR SPACE IS PROVIDED.

CONSTRUCTION

Exclusive Flexi-Guard® Safety Bubbler: Innovative design utilizes a pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact, then returns to original position. Strong. Abrasion-resistant. Anti-sweat. Keyed in location to prevent rotation.

ACCESSORIES

MB24: Mounting Box is available as an optional accessory.

STANDARDS

This fountain is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953.

• Elkay EDFB12FPK Freeze Resistant Recessed Drinking Fountain Spec Sheet
