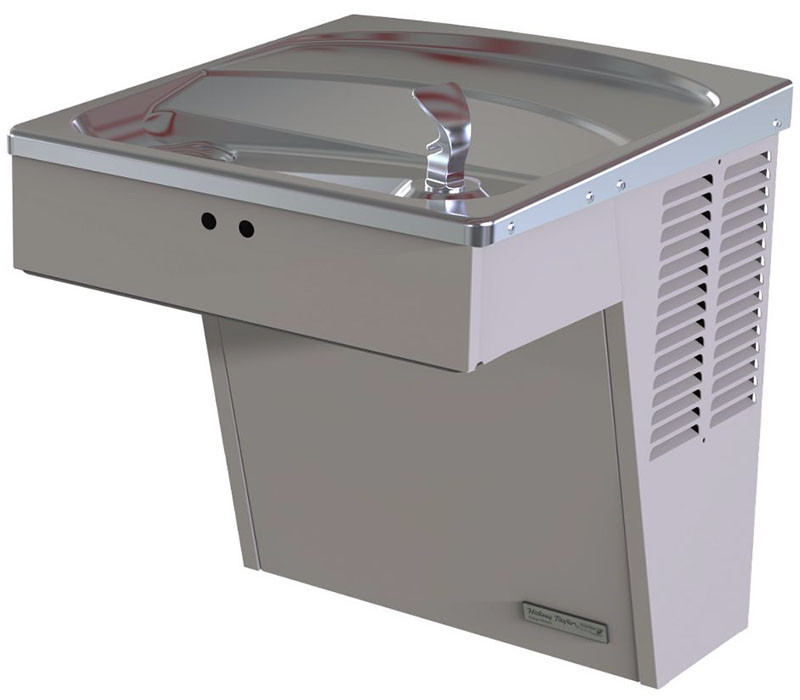

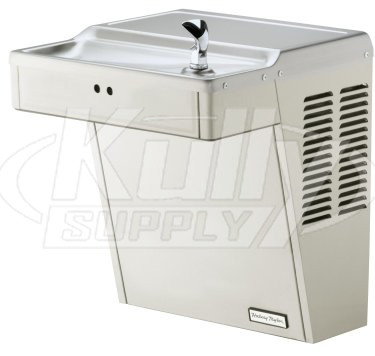

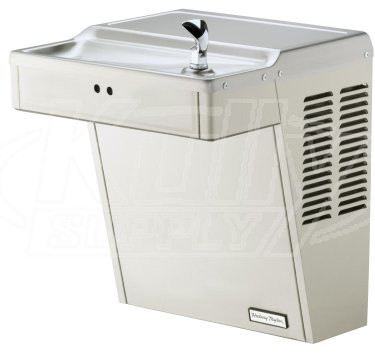

Self-contained, electric refrigerated wall-mounted water cooler easily accessible to physically challenged individuals. When properly installed, unit meets state and federal requirements for both children or adults as deﬁned by the Americans with Disabilities Act. Unit is certiﬁed to NSF/ANSI 61, and meets requirements of the Safe Drinking Water Act. Unit provides 50° F water at 80° F inlet water and 90° F ambient.
Stainless steel panels resist wear and corrosion. Durable satin ﬁnish helps hide water spots and ﬁngerprints.
Non-corrosive stainless steel cooler top, number 300 series with satin ﬁnish resists stains and corrosion and is easy to maintain. Anti-splash ridge reduces splatter. Contoured to insure proper drainage.
Exclusive one-piece, chrome-plated twostream mound-building bubbler with non-removable anti-squirt feature and integral hood insures a satisfying drink of water.
Model HAC8EE-Q CHILD features infra-red light beam emitting sensor and a solenoid valve. Upon interruption of the light beam, the sensor actuates the solenoid valve to ﬂow water. User does not have to touch the water
cooler to obtain a drink of water. The water ﬂow is automatically shut-off after 30 seconds or earlier if the user leaves the sensing range. Supplied with a built-in time delay to avoid nuisance actuation from passers-by.
AUTOMATIC STREAM HEIGHT REGULATOR
Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.
Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway.
Positive sensing thermostat for controlling temperature of storage tank water. Factory set at 50° F Adjustable ±5° F.
Non-pressurized stainless steel evaporator/storage tank for long life. Waterways are certiﬁed to NSF/ANSI 61,
far exceeding the requirements of the Safe Drinking Water Act.
Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer, and self-lubricated fan cools copper/aluminum condenser. System
uses R134A refrigerant. Protected by Halsey Taylor’s Limited 5 Year Warranty.
Insure proper ventilation by maintaining 6” (152mm) minimum clearance from cabinet louvers to wall.
Shall deliver 8.0 GPH of 50° F water at 90° F ambient and 80° F inlet water. Shall have stainless steel basin with removable drain strainer. Bubbler shall be two-stream, mound building type. Separate valve and automatic stream regulator shall be mounted within cabinet. Refrigeration system shall employ high efficiency, positive start compressor using R134A, non-pressurized tank with totally encapsulated insulation and be controlled by
positive sensing thermostat. Shall have electronic eye water controls for hands-free operation. Cooler shall comply with ANSI 117:1 and ADA for visual and motion disabilities. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61, and the Safe Drinking Water Act. Unit complies with ARI Standard 1010.
NOTE: Continued product improvement makes speciﬁcations subject to change without notice. See Halsey Taylor website for most current spec sheet.
NOTE: Water will only ﬂow from bubbler when unit has electrical connection.
