Description
GENERAL

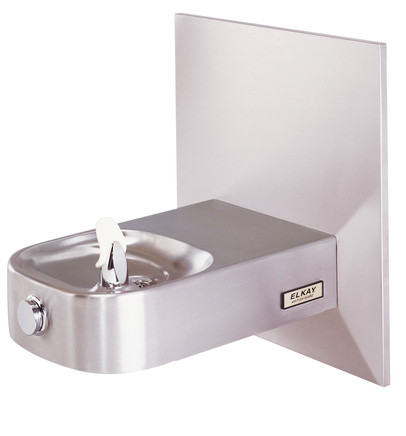

Wall mounted drinking fountain constructed of #18 gauge, type 304, stainless steel polished to a satin finish.
Contoured basin minimizes splashing and has exclusive Flexi-Guard® safety bubbler to prevent accidental mouth injuries. Keyed in location to prevent rotation. Easy to operate, fully functional push button is vandal resistant. Bottom cover plate included. Flow regulator provides constant stream from 20 to 105 psi water pressure.
ADA COMPLIANT
THIS DRINKING FOUNTAIN COMPLIES WITH THE REQUIREMENTS OF A.D.A. (AMERICANS WITH DISABILITIES ACT) FOR CHILDREN’S ENVIRONMENTS WHEN PROPERLY INSTALLED. PROVIDES A FLOOR TO ORIFICE HEIGHT OF 30” AND 24” OF KNEE CLEARANCE. CHECK LOCAL AND STATE CODES.
NO LEAD DESIGN
THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed. This fountain is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953.
CONSTRUCTION
ECDFPW314C furnished complete with Flexi-Guard®, and easy to operate, vandal-resistant front push button. Flow regulator provides constant stream from 20 to 105 psi water pressure. Stainless steel wall plate with surface mounting plate and vandal-resistant bottom cover plate included. Trap furnished by others.
ALSO AVAILABLE
Model ECDFPWVR314C: Includes vandal-resistant bubbler. Heavy duty, one-piece construction, chrome plated brass.
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
