Description
GENERAL

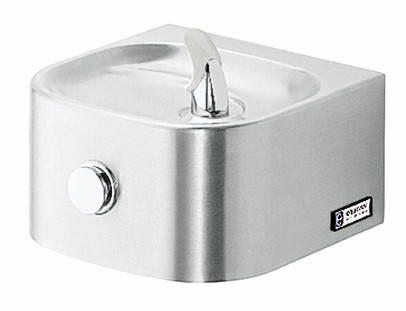

Wall mounted freeze-resistant drinking fountain for all weather applications. Constructed of #18 gauge, type 304, stainless steel polished to a satin finish. Includes freeze-resistant box LKFRB1 to be mounted on interior heated wall where the temperature does not drop below 50°F (10°C).
Contoured basin minimizes splashing with vandal-resistant bubbler keyed in location to prevent rotation. Heavy-duty pushbutton control is vandal-resistant.
NO LEAD DESIGN
THIS DRINKING FOUNTAIN COMPLIES WITH THE LEADFREE DEFINITION IN THE SAFE DRINKING WATER ACT OF 1986 AND LEAD CONTAMINATION CONTROL ACT OF 1988.
Elkay Drinking Fountains are manufactured with a waterway system utilizing copper components and completely lead-free material. These waterways have no lead because all leaded materials, such as leaded brass, have been removed.
This fountain is certified by WQA to lead-free compliance including NSF/ANSI 61-ANNEX G, AB 1953.
CONSTRUCTION
EDFP210FPK furnished complete with vandal-resistant bubbler, heavy-duty push-button and vandal-resistant bottom cover plate.
LKFRB1 includes box with separate front louvered panel. Flow regulator provides constant stream from 20 to 105 psi water pressure. Operated by adjustable cable system. Trap and drain tube included for proper installation.
Accessories
- MPW101 In-wall carrier mounting plate.
- ML100 Support columns for MPW101.
