Elkay EZSTL8LC and EZSTLR8LC Parts Breakdown

  • Item #: breakdown-EZSTL8LC-EZSTLR8LC
  • |
  • Manufacturer: Elkay

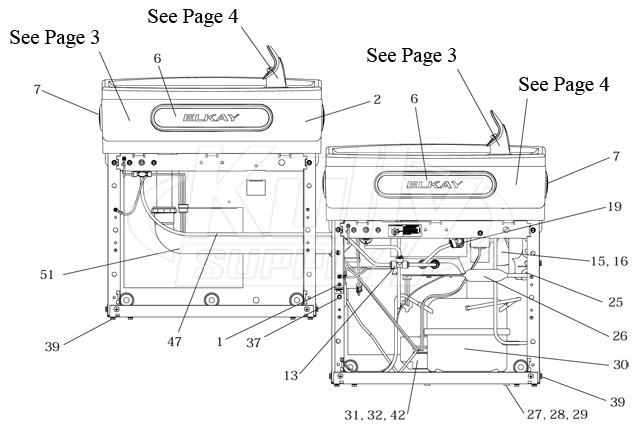

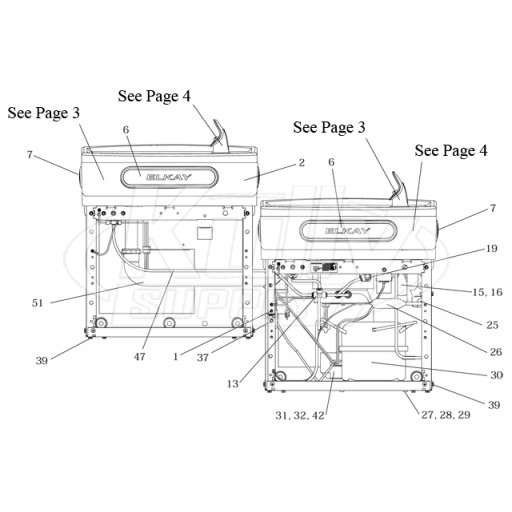

Breakdown for models: EZF(S)TL8*1C, EZF(S)TLR8*1C, EZF(S)TL8_2C, EZF(S)DTL*C, EZF(S)DTLR*C, LZF(S)DTL*C, LZF(S)TL8*1C, LZF(S)TLR8*1C, LZF(S)TLVR8*1C, and LZF(S)TL8*2C.
Part # Image Part Details Price Options
1 Elkay 98898C EZ Hardware Kit Item #: 162848 Learn More
$21.00
2 Elkay 56229C Upper Shroud (with Front and Side Push Bars) Item #: 107621 Learn More
List Price: $111.00 $99.90 You Save 10%
2 Elkay 56230C Upper Shroud w/ Front Push Button (Discontinued) Item #: 102785 Learn More
List Price: $81.95 $65.50 You Save 20%
More Info
3 Elkay 35948C Push Bar Switch (Discontinued) Item #: 102468 Learn More
More Info
4a Elkay 36216C Wiring Assembly (Front/Side Pushbars) Item #: 106462 Learn More
List Price: $68.00 $61.20 You Save 10%
4b Elkay 36217C ASSY -WIRING FRNT PSH Item #: 136069 Learn More
$25.73
5a Elkay 36161C White Power Jumper Wire Item #: 133510 Learn More
$11.55
5b Elkay 36162C Black Jumper Wire Item #: 133511 Learn More
$6.60
6 Elkay 55999C EZ-Series Drinking Fountain Front Pushbar Item #: 102484 Learn More
$40.00
7a Elkay 56002C EZ-Series Drinking Fountain Side Pushbar Item #: 102485 Learn More
$15.42
7b Elkay 56074C Push-Filler Side (Discontinued) Item #: 106708 Learn More
More Info
8 Elkay 56118C Drain Gasket (Discontinued) Item #: 102488 Learn More
More Info
9 Elkay 98900C Drain Kit - for EZTL Dual-Station RIGHT Unit Item #: 162840 Learn More
$46.25
10 Elkay 75580C Bubbler Kit Nut (Discontinued) Item #: 106824 Learn More
More Info
11 Elkay 66654C REG. ASSY - W/RED INTRNL SPRIN Item #: 136542 Learn More
More Info
12 (16-18) Elkay 98775C Fan Motor Assembly Kit Item #: 162844 Learn More
List Price: $130.00 $117.00 You Save 10%
13 Elkay 70682C John Guest Tee Coupling 1/4" x 1/4" x 1/4" Item #: 102492 Learn More
$28.50
15 Elkay 30664C Fan Blade (Discontinued) Item #: 106616 Learn More
More Info
16 Elkay 70018C Nut - Hex 1/4 - 20 (Discontinued) Item #: 106370 Learn More
More Info
17 Elkay 31490C Fan Motor (Discontinued) Item #: 102518 Learn More
More Info
18 Elkay 70009C Exp-Screw Furn w/AL Motor Item #: 106633 Learn More
More Info
19 Elkay 75583C John Guest Elbow 1/4" x 5/16" Item #: 102774 Learn More
List Price: $45.00 $40.50 You Save 10%
20a Elkay 27862C Panel-Wrapper Right (Discontinued) Item #: 106849 Learn More
More Info
20b Elkay 27864C Panel Wrapper TL-R-EZ (Discontinued) Item #: 107199 Learn More
More Info
20c Elkay 1000000944 Panel Wrapper-Light Grey (RH) Item #: 163709 Learn More
List Price: $126.00 $113.40 You Save 10%
20d Elkay 27929C Panel Wrapper (R) EZ (Discontinued) Item #: 134032 Learn More
$111.93
More Info
21a Elkay 27852C Panel-Wrapper Left (Discontinued) Item #: 106848 Learn More
More Info
21b Elkay 27854C Panel Wrapper TL-L-EZ (Discontinued) Item #: 107200 Learn More
More Info
21c Elkay 27921C Lower Left Unit Panel Wrapper EZ (Discontinued) Item #: 133800 Learn More
More Info
21d Elkay 27919C PANEL-WRAPPER TLR L-EZ (S) (Discontinued) Item #: 135614 Learn More
More Info
22 Elkay 40322C Stream Breaker Item #: 102823 Learn More
$15.40
23 Elkay 50171C ORING-.364ID X .070 (Discontinued) Item #: 136257 Learn More
More Info
24 Elkay 50314C Flow Straightner (Discontinued) Item #: 107844 Learn More
More Info
25-26 Elkay 98776C Condenser/Drier Kit Item #: 162845 Learn More
List Price: $99.00 $89.10 You Save 10%
25 Elkay 66743C Condenser (Discontinued) Item #: 133604 Learn More
More Info
26 Elkay 66703C DRIER-134A (Discontinued) Item #: 136559 Learn More
More Info
27 Elkay 10-14745-51-730 STUD -COMPR MTG (Discontinued) Item #: 134695 Learn More
More Info
28 Elkay 10-08067-40-570 Grommet (Discontinued) Item #: 110863 Learn More
More Info
29 Elkay 19037000 Clip (Discontinued) Item #: 110864 Learn More
More Info
30 Elkay 36322C Compressor with Overload and Relay Item #: 162634 Learn More
List Price: $415.00 $373.50 You Save 10%
31,32 & 42 Elkay 98535C Overload, Relay and Cover Kit - 115V Item #: 140041 Learn More
List Price: $45.00 $41.37 You Save 8%
31 Elkay 35959C Relay (Discontinued) Item #: 102705 Learn More
More Info
32 Elkay 35768C Cover Relay (Discontinued) Item #: 129695 Learn More
More Info
33 Elkay 66576C HEATX-BARRIER FREE (Discontinued) Item #: 136522 Learn More
More Info
35 Elkay 70444C Hose Clamp Item #: 106091 Learn More
More Info
36 Elkay 55001109 Basin - Stainless Steel Item #: 106280 Learn More
List Price: $181.00 $162.90 You Save 10%
37 Elkay 31513C Cold Control Thermostat Item #: 102467 Learn More
List Price: $48.00 $43.20 You Save 10%
38 Elkay 98724C Evaporator Replacement Kit Item #: 151228 Learn More
$296.10
39 Elkay 70002C Screw Item #: 102509 Learn More
More Info
40 Elkay 56011C Bubbler Guard (Discontinued) Item #: 107210 Learn More
More Info
41 Elkay 55997C Pedestal (Discontinued) Item #: 107133 Learn More
More Info
42 Elkay 36158C Overload 115V (Discontinued) Item #: 106323 Learn More
More Info
43 Elkay 28401C Wall Hanger Bracket Item #: 102657 Learn More
$24.75
44 Elkay 56082C Cartridge Hold Open Nut (Discontinued) Item #: 102660 Learn More
More Info
45 (23,40,41) Elkay 92715C Flexi-Guard Bubbler Head Kit Item #: 102494 Learn More
List Price: $42.00 $37.80 You Save 10%
46 Elkay 36247C Solenoid - (No Nut, No Regulator) Item #: 133486 Learn More
More Info
47 Elkay 56092C Drinking Fountain Plastic Tubing 1/4" x 48" Item #: 102487 Learn More
$15.40
48 Elkay 0000001192 Flat Black Gasket Item #: 102517 Learn More
List Price: $14.00 $12.60 You Save 10%
49 Halsey Taylor 97446C Vandal Resistant Bubbler Kit Item #: 130869 Learn More
List Price: $174.00 $156.60 You Save 10%
49 Elkay 98118C Bubbler Assembly VR w/Screen (Discontinued) Item #: 106326 Learn More
More Info
50 Elkay 15009C Bubbler Head Nipple Item #: 102461 Learn More
$50.40
51 Elkay 45874C ASSY-DRAIN-EZ UNV BL Item #: 136244 Learn More
$38.78
More Info
53 Elkay 98169C Solenoid Kit (cap, screen, and o-ring) Item #: 106136 Learn More
$31.25
54 Elkay 56213C Panel-Access Item #: 136365 Learn More
$8.80
55 Elkay 75740C SCREW-#10-16 X .75 THSM (Discontinued) Item #: 160424 Learn More
More Info
NS Elkay 28414C BRKT -TRIM STRIP EZ TL (SS) Item #: 135754 Learn More
$31.50
NS Elkay 28415C BRKT -TRIM STRIP EZ TL (L) Item #: 135755 Learn More
$19.85
NS Elkay 75635C SCREW-#10-16 X .75 PTHD TEKS Item #: 136695 Learn More
$7.84

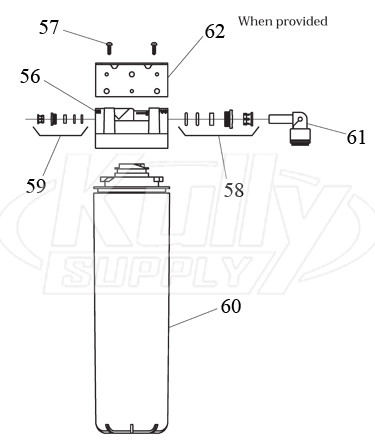

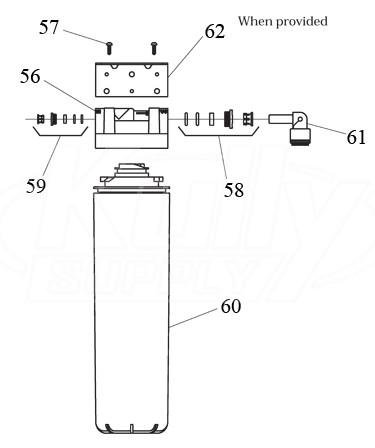

56 Elkay 51294C Filter Housing Head Item #: 102511 Learn More
$39.14
More Info
57 Elkay 70792C Screw Item #: 107324 Learn More
$6.60
58 Elkay 70823C Fitting - Superseal 3/8(10mm) Item #: 106622 Learn More
$15.00
59 Elkay 98532C Tubing, O-Ring & Fitting Kit Item #: 140038 Learn More
List Price: $91.00 $81.90 You Save 10%
60 Elkay 51299C Drinking Fountain Replacement Filter (1500 Gallons) Item #: 102502 Learn More
$82.40
61 Elkay 70818C Elbow Fitting 3/8 Stem 3/8 Tube Item #: 102880 Learn More
$27.50
62 Elkay 22490C BRKT -FILTER MOUNTING Item #: 135271 Learn More
$32.50
