Description
GENERAL INFORMATION

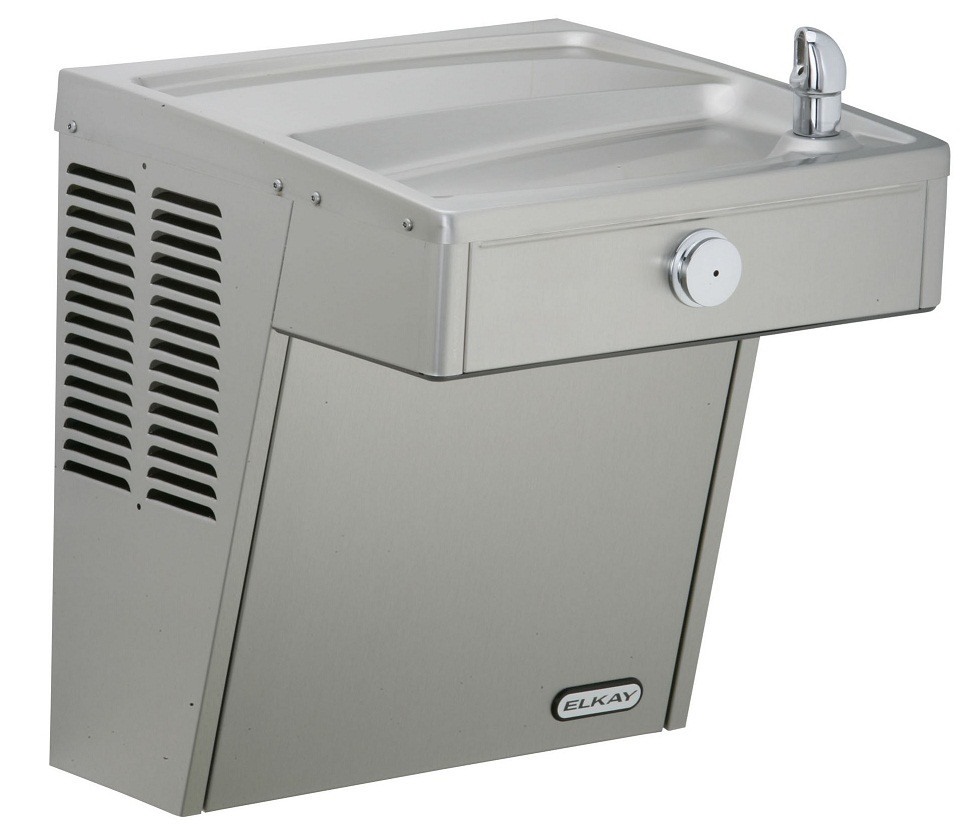

- Self-contained, wall hung electric refrigerated, water cooler
- Vandal-resistant unit for use in high demand locations where vandalism may occur
- Rated for indoor or outdoor use
- Stainless steel construction provides vandal-resistant enclosure
- Optional perforated stainless steel louver screening prevents objects from being inserted into cooler
- Flow regulator provides constant stream from 20 to 105 psi water pressure
- Heavy duty push button control is vandal-resistant
- Non-pressurized cooling tank is standard
- Non-pressurized water tank is located after bubbler valve, so that tank is subject to line pressure only when push button is pressed
ADA COMPLIANT
The Elkay EZS8L Water Cooler comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. Also meets the guidelines for children’s environments providing the floor to orifice height is 30” or less and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes.
NO LEAD DESIGN
These Water Coolers are certified to be lead-free as defined by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler.
CONSTRUCTION
- Frame: Galvanized structural steel chassis supports fountain top and cabinet panels
- Fountain Top: Series 300 one piece stainless steel top, polished to a uniform Elkay bright luster finish. Basin has embossed bubbler pad
- Vandal-Resistant Bubbler: Heavy duty, one piece construction. Keyed into position to prevent rotation. Meets UL requirements and all sanitary codes
- Cabinet: Cabinet design allows for flush to wall mounting. No recess space is required. Includes bottom cover plate fastened with vandal-resistant screws
Manufacturer Info
Elkay is the preferred source for products of superior value. Elkay is a supplier of high value commercial plumbing products that include drinking fountains, water coolers, faucets, and repair parts.
