Description

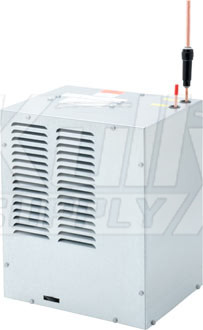

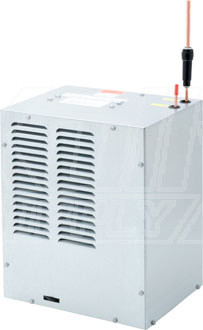

Model HCR8.50 is a 220 Volt, 50 Hz remote chiller provides 8.0 gallons (30.20 liters) per hour of cold water. This remote can provide chilled water to a water to a wide variety of fountains with modern styling. Chiller can be concealed under a counter, between or within walls (check local codes), or high on a wall or column. Ideally suited for factories, cafeterias, restaurants, schools, and offices. Other uses could be for precooling for beverage dispensers and fountains, machine coolant cooling, photo and X-ray processing, laboratory experimental work, or a capacity booster for ice cube makers. Model HCR8.50, 8-gph remote chiller, includes a heavy gauge galvanized steel cabinet.
The refrigeration system is balanced to provide low energy usage and a longer life assured by utilizing a high displacement compressor, a counterflow cooling evaporator/chiller, efficient capillary sizing, a large capacity dryer-strainer, and a fan-cooled condenser with maximum heat exchange. Environmentally friendly R134a refrigerant is controlled by calibrated capillary tube. Air cooled remote chillers require air circulation for proper operation. Any chiller mounted under a counter must also be provided with adequate ventilation.
When chiller is installed in wall be certain that it can always be removed through opening without damaging either chiller or wall. Allow minimum 1” clearance. Minimum 4” clearance on back side. Unit is furnished with leads enclosed inside terminal enclosure 220 Volt, 50 Hz, single phase. Capacity is based on ARI standard of rating conditions of 50°F (10°C) drinking water, 80°F (26°C) inlet water, and 90°F (32°C) room temperature.
Multiple-Outlets: HCR8.50 is capable of supplying a maximum of 2 stations (bubbler, glassfiller). Supply line to station should be adequately insulated and no farther than 7 feet from chiller.
Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.
Warranty Info
Haws warrants that all of its products are guaranteed against defective material or poor workmanship for a period of one year from date of shipment. Haws liability under this warranty shall be discharged by furnishing without charge F.O.B. Haws Factory any goods, or part thereof, which shall appear to the Company upon inspection to be of defective material or not of first class workmanship, provided that claim is made in writing to Haws within a reasonable period after receipt of the product. Where claims for defects are made, the defective part or parts shall be delivered to the Company, prepaid, for inspection. Haws will not be liable for the cost of repairs, alterations or replacements, or for any expense connected therewith made by the owner or his agents, except upon written authority from Haws, Sparks, Nevada. Haws will not be liable for any damanges caused by
defective materials or poor workmanship, except for replacements, as provided above. Buyer agrees that Haws has made no other warranties either expressed or implied in addition to those above stated, except that of title with respect to any of the products or equipment sold hereunder and that Haws shall not be liable for general, special, or consequential damages claimed to arise under the contract of sale. The drinking fountain manufactured by Haws is warranted to function if installation and maintenance instructions provided are adhered to. The units also must be used for the purpose for which they were intended. No other warranties expressed or implied are authorized, provided or given by Haws.
Manufacturer Info
Haws manufactures award-winning drinking fountains, electric water coolers, hydration stations, and emergency equipment for a diverse set of industries. For over 103 years, Haws has been committed to bringing the highest quality water delivery and emergency equipment products to a wide variety of markets.
