Description
Suggested Specification
Model P8ACSL STN shall deliver 8.0 gph of 50°F water at 90°F ambient and 80°F inlet water. Model P8ACSL STN shall include front and side push pads to activate the flow of water. Basin shall be designed to eliminate splashing and standing water. Bubbler shall have a flexible guard and operate between 20 and 120 PSI. Cabinet finish shall be brushed stainless steel. Cooling system shall use R-134a refrigerant. Shall comply with ANSI A117.1 and ADA. Shall be listed by Underwriters’ Laboratories to U.S. and Canadian standards. Shall comply with ANSI/NSF 61.
Model

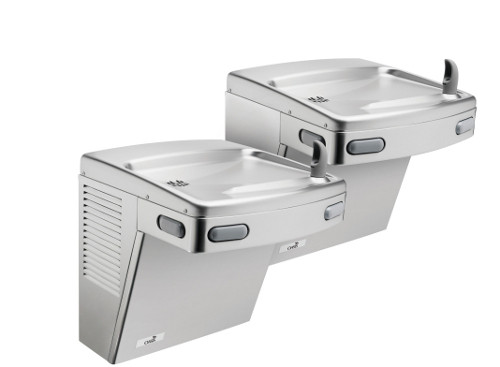

P8ACSL STN delivers 8.0 gallons of chilled drinking water per hour.
These models satisfy CABO/ANSI A117.1. When accessory apron is used on the upper unit, this cooler will comply with ADA guidelines when properly installed. Apron is not required when installed in an alcove or if a wing wall is installed on the right side for a right high unit or the left side for a left high unit.
Models also meet guidelines for children’s accessibility providing the floor to orifice height is 30 inches and proper clear floor space is provided for frontal approach.
Options
- Glass Fillers (factory installed)
- Push Handle (029603-004)
- Push Back (029603-005)
- Push Down (029603-006)
- Apron for Upper Unit
- Stainless Steel Bubbler
Limited 5-Year Warranty (Continental limits of the United States and Canada): Five years on the sealed refrigeration system and most component parts. Detailed warranty certificate enclosed with each water cooler; sample available upon request.
Export Warranty: One year on the sealed refrigeration system and most component parts. Four-year replacement contract on sealed refrigeration system. Detailed warranty certificate enclosed with each drinking fountain; sample copy available upon request.
Features and Benefits
- Built-in 100 Micron Strainer Stops Particles Before They Enter the Waterway
- ADA Compliant for Both Adult or Child When Properly Installed
- Waterways are Lead-Free in Materials and Construction
- Stainless Steel Top
- Flexible Bubbler Guard
- Heavy Duty Galvanized Steel Frame
- High Efficiency Cooling Tank and Coil
- Refrigerant R-134a
- ANSI/NSF 61
- External Stream Height Adjustment
- Split Level is Available in Standard or Reversed
- Four Push Pad Activation
Warranty Info
WATER COOLER LIMITED WARRANTY
FIRST YEAR: The Manufacturer promises the original purchaser (user) to repair or, at the Manufacturer’s option, to replace any part of this water cooler which proves to be inoperative due to a defect in material or workmanship under normal use, for a period of one year from the date of original installation or for a period of eighteen (18) months after date of shipment from the factory, whichever occurs first. During the one year warranty, the Manufacturer will, through its approved service center or factory repair department, provide labor and parts necessary to correct such inoperative condition at no charge, if the water cooler has been installed and operated in accordance with the written instructions furnished with the water cooler. If it becomes necessary to ship the inoperative water cooler to the approved service center or factory repair department, the Manufacturer will pay the transportation charges both ways via common carrier. Local delivery charges are not covered. The cost of labor required to disconnect and reconnect plumbing and electrical connections will be the responsibility of the user (owner).
SECOND THROUGH FIFTH YEAR:
The Manufacturer promises within the second through fifth year to repair, or at its option, to replace any part of the sealed refrigeration system (compressor, condenser, evaporator, compartment evaporator and interconnecting refrigerant lines, or the internal cold water system cooling tank, pre-cooler and soldered interconnecting cold water lines) which prove to be inoperative due to a defect in material or workmanship. The Manufacturer will provide through its approved service center or the factory repair department, the labor at no charge, to install such parts of the sealed refrigeration or cold water system. If it becomes necessary to ship the inoperative water cooler to the approved service center or factory repair department, the Manufacturer will pay the transportation charge both ways via common carrier. Local delivery charges are not covered. The cost of labor, to diagnose a sealed refrigeration system or cold water system failure, the cost of labor required to disconnect and reconnect plumbing and electrical connections or the labor to remove the refrigeration system from the water cooler, will be the responsibility of the user (owner).
GENERAL PROVISIONS AND EXCLUSIONS:
This warranty applies only within the Continental Limits of the United States of America and Canada. This warranty does not apply and no agreement, either expressed or implied, shall be applicable if the affixed serial number is removed, defaced or obliterated. This warranty does not apply if service of the sealed refrigeration system or cold water system or parts furnished as original equipment by the Manufacturer are not obtained from an approved service center or the factory. This warranty does not apply to any water components that become inoperative due to liming conditions. This warranty does not apply to any water cooler or components that become inoperable because of a failure to satisfy standards or regulations adopted by any government or agency thereof subsequent to the date of shipment from the factory. This warranty does not cover performance, failure or damages of any part resulting from external causes such as alterations, abuse, misuse, misapplication, corrosion or acts of God. This warranty does not apply to non-refrigerated water fountains, cuspidors, dispensers and accessories, nor the following models: VP13FSN; ER2-RR; TPK; ER2; R1P. These products and models have individual warranties.
WARNING
The warranty and the Underwriters’ Laboratory listing for this machine are automatically voided if this machine is altered, modified, or combined with any other machine or device. Alteration or modification of this machine may cause serious flooding and/or hazardous electrical shock or fire. Except as set forth herein, the Manufacturer makes no other warranty, guarantee or agreement expressed, implied or statutory, including any implied warranty of merchantability or fitness for a particular purpose. The foregoing is in lieu of all other agreements expressed, implied or statutory and all other obligations or liabilities of the Manufacturer. The Manufacturer does not assume or authorize any person to assume any obligations of liability in connection with this product. In no event will the Manufacturer be liable for special or consequential damages or for any delay in the performance of this agreement due to causes beyond their control.
Manufacturer Info
OASIS International has become the global leader in the design, manufacture, and distribution of clean drinking water systems. Oasis develops water-friendly solutions that provide clean and safe drinking water for everyone.
