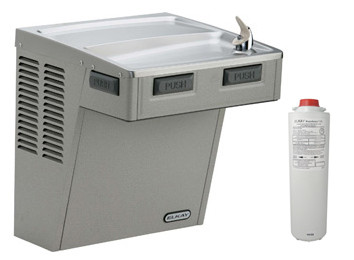

Self-contained, wall hung electric refrigerated, water cooler.
Capacity 8.0 GPH of 50°F drinking water, based upon 80°F inlet water and 90°F ambient.
LMABF8L has a hooded stream projector with self closing push bars on front and both right and left sides.
Flow regulator provide constant stream from 20 to 105 psi water pressure. Bubbler orifice fully protected to meet all sanitary codes.
Non-pressurized cooling tank is standard.
Non-pressurized water tank is located after bubbler valve, so that the tank is subject to line pressure only when push bar is pressed.
These Water Coolers comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. Unit is compliant if installed in an alcove and is also compliant when mounted on an exposed wall if a wing wall is located on the left side or if LKAPREZL apron is installed under upper unit. Also meets the guidelines for children’s environments providing the floor to orifice height is 30” or less on the lower unit and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes.
NO LEAD DESIGN
These Water Coolers are certified to be lead-free as defined by the Safe Drinking Water Act. Elkay Water Coolers are manufactured with a waterway system utilizing copper components and completely lead-free materials. These waterways have no lead because all lead materials, such as leaded brass, have been removed. All joints are brazed using silver solder only. No lead solder is permitted. A strainer with an easily cleanable screen is provided to allow trapping and convenient removal of waterborne particulate of 140 microns and larger prior to their entry into the water cooler.
Features and Benefits
Easy-Touch pushbar activation
Contoured basin minimizes splashing; with integral drain
Available with Flexi-Guard® Safety bubbler or Vandal-resistant bubbler (includes “VR” code in model no. see chart below)
Valve with built-in flow regulator to provide constant stream from 20 to 105 psi water pressure
Finish options: Impact-resistant vinyl coating or stainless steel
Rated for Indoor use
WaterSentry® VII 1500-gallon capacity Filtration System, certified to NSF/ANSI 42 & 53 (Lead, Class 1 Particulate, Chlorine, Taste & Odor)
Compressor: Hermetically-sealed, reciprocating type, single phase. Sealed-in lifetime lubrication.
Condenser: Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated.
Cooling Unit: Combination tube-tank type. Self-cleansing. Continuous copper tubing with stainless steel tank. Fully insulated with EPS foam that meets UL requirements for self-extinguishing material
Refrigerant Control: Refrigerant R134a is controlled by accurately calibrated capillary tube.
Temperature Control: Easily accessible enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements.
Cooler cabinet:* Available as Light Gray Granite Vinyl Clad Steel or Stainless Steel (additional cost) construction
Exclusive Flexi-Guard Safety Bubbler (option) utilizes an infused anti-microbial pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.
Vandal-resistant bubbler (option) is one-piece, heavy-duty construction
• 51299C (single)
Warranty: 5 year limited warranty on the unit’s refrigeration system. Electrical components and water system are warranted for 12 months from date of installation or 18 months from factory shipment, whichever date falls first.
