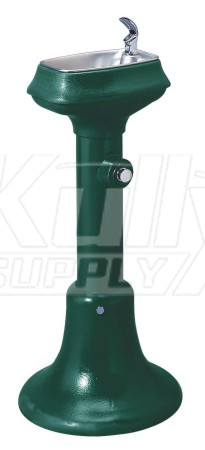

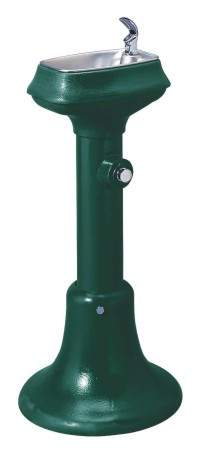

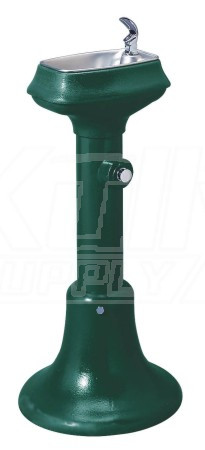

Halsey Taylor 4881FR Outdoor Drinking Fountain

Features and Benefits

• Vandal-resistant Double Bubbler
• Freeze-resistant valve buried below frost line
• Chrome-plated exposed fittings
• Automatic stream regulator
• Available in 30” (4880) or 36” (4881) heights
• 12” W x 8” D basin

GENERAL

Pedestal, cast iron closed base with forest green enamel finish for year-round beauty with minimum maintenance. Contour-formed basin with rounded corners and edges reduces splatter, insures proper drainage and prevents standing waste water. Model 4881FR is 36” high.

FREEZE-RESISTANT VALVE SYSTEM

Freeze-resistant valve designed for ground installation 18” below the frost line. 60” of access tubing provided with the freeze resistant valve system. The length of the tubing can be adjusted in the field for lesser frost depths.

BUBBLER

Exclusive one-piece, vandal-resistant, chrome plated two-stream mound-building bubbler with non-removable anti-squirt feature and integral hood insures a satisfying drink of water.

PUSHBUTTON ACTUATION MECHANISM

Self closing, vandal-resistant push-button does not require grasping or twisting.

AUTOMATIC STREAM HEIGHT REGULATOR

Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.

WATER INLET

3/8” NPT fitting

DRAIN OUTLET

Drain requirements are detailed in owner’s manual.

SUGGESTED SPECIFICATIONS

Fountain shall include push-button on the front. Shall include contour-formed basin to eliminate splashing and standing water, and shall have rounded corners and edges. Projector shall be single-stream type with integral hood guard and anti-squirt feature. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61, and the Safe Drinking Water Act.

Standard Finish is Forest Green enamel.

Service stop not included.

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.

• Halsey Taylor 4881FR Spec Sheet
