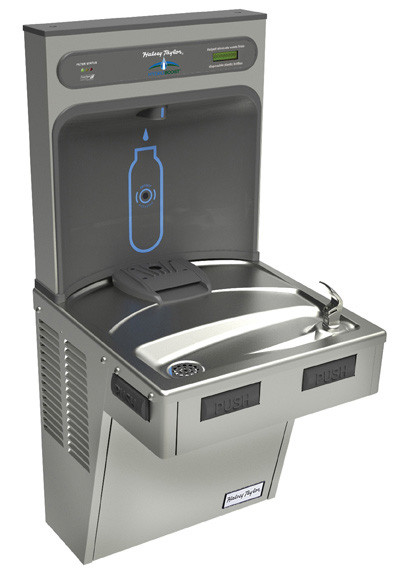

Halsey Taylor HTHB-HACLRWF-PV HydroBoost Non-Refrigerated Fountain & Bottle Filler

General

Complete water station including HydroBoost™ bottle filling station and filtered HAC water cooler(s).

HAC Water Cooler

Self-contained, wall-mounted, single water cooler. Model HTHBHAC8WF delivers chilled drinking; model HTHB-HACDWF delivers ambient drinking water. Exclusive one-piece, chrome-plated twostream Double Bubbler™ with non-removable anti-squirt feature and integral hood. Automatic stream height regulator is located inside unit to prevent tampering. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi. Includes self-closing, light touch front and side pushbar actuation with raised letters for the visually impaired. Non-corrosive Type 300 series stainless steel cooler top with satin finish resists stains. Basin includes anti-splash ridge and contoured to insure proper drainage.

HydroBoost™ Bottle Filling Station

Sensor-activated enhanced with user interface graphics. Quick fill rate is 1.5 gallons per minute on refrigerated model and 1.1 gallons per minute on ambient model. Laminar flow provides a clean fill with minimal splash and easy maintenance. Equipped with an automatic 20-second shut-off timer. Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew.

Lead Reduction Filter With Filter Life Indicator

Equipped with the HWF3000 WaterSentry® Plus Filter. QuickDisconnect, ¼ turn installation and automatic inlet shut-off valve that closes when filter is removed. High-grade filter is made with activated carbon and patented ATS lead-removal media. Certified to NSF/ANSI 42 for Chlorine-Class 1, Particulate-Class 1 and Taste and Odor and NSF/ANSI 53 for Lead Reduction. Green, yellow and red LEDs visually indicate when filter maintenance is required. For service replacement, order as 55898C (single) or 55898C_3PK (three filters).

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.

• Halsey Taylor HTHB-HACLRWF-PV Spec Sheet
• Halsey Taylor HTHB-HACLRWF-PV Operation Manual
