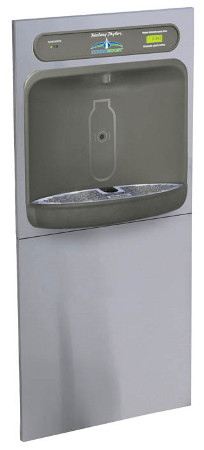

Halsey Taylor HYDROBOOST HTHB-LR Non-Refrigerated Sports Bottle Filler

Halsey Taylor HYDROBOOST HTHB-LR Non-Refrigerated Sports Bottle Filler icon_image_enlarge.png
  • Model #: HTHB-LR
  • Part #: 138095
  • Manufacturer: Halsey Taylor
List Price: $1,529.00
Our Price:
$1,100.93
Qty:

$46.50 Shipping

icon_freight_shipping_help

The HYDROBOOST Series is Halsey Taylor’s line of sports bottle fillers.

The Halsey Taylor HYDROBOOST HTHB-LR features sensor operation for hands-free use. It is a single level recessed sports bottle filler.

Need Product Assistance?

Call Us

800-518-5388

-or-

Kully Supply is committed to offering the best product support through our knowledgeable customer service team. If you have any questions, feel free to contact us.

billMeLater

GENERAL

In-wall, recessed design for stand-alone applications or paired with Halsey Taylor Contour™ and OVL™ fountains to create the ultimate high end water station. When properly installed, unit meets reach range guidelines as defined by the Americans with Disabilities Act.

BOTTLE FILLING

Quick fill rate at 1.5 gallons per minute. Laminar flow provides a clean fill with minimal splash and easy maintenance.

SENSOR ACTIVATED

User interface design makes touchless operation intuitive. Equipped with automatic 30-second shut-off timer.

SILVER ION ANTI-MICROBIAL PROTECTION

Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew.

LEAD REDUCTION FILTER WITH FILTER LIFE INDICATOR

Equipped with the HWF3000 WaterSentry® Plus Filter which is designed to remove lead particles and chlorine. Also reduces odors and discoloration from incoming water. Features include Quick-Disconnect, 1/4 turn installation. Automatic inlet shut-off valve that closes when filter is removed. High-grade filter is made with activated carbon and patented ATS lead-removal media.

Green, yellow, and red LEDs visually indicate when filter maintenance is required. For service replacement, order as: 55898C – Single filter 55898C_3PK – Filter three-pack.

GREEN TICKER

Visually displays count of 16 ounce plastic bottles saved from landfills.

MOUNTING FRAME

Mounting frame is manufactured of corrosion resistant, galvanized steel. Open construction designed for ease of installation. Mounting frame can be shipped in advance for rough-in installation.

PANEL SYSTEM

Designed with hinged top and bottom stainless steel panels for easy access and service. Refrigerated model includes louvered panel. Non-refrigerated models includes solid panel.

SUGGESTED SPECIFICATIONS

Model HTHB-LR is non-refrigerated and provides ambient water. Shall be recessed design and constructed of 18 gauge Type 300 series stainless steel and ABS plastic. Shall include electronic sensor for no-touch activation with automatic 30-second shut-off timer. Shall provide 1.5 gpm flow rate with laminar flow to minimize splashing. Shall include antimicrobial protected plastic components to prevent mold and mildew. Shall include the WaterSentry® Plus filter, certified to NSF/ANSI 42 and 53 for lead, with visual monitor to indicate when replacement is necessary. Shall meet ADA guidelines for reach ranges, when properly installed. Shall be lead-free design which meets Safe Drinking Water Act and is certified to NSF/ANSI 61 and California AB1953. Shall be listed by Underwriters Laboratories to both U.S. and Canadian requirements.

NOTE: Continued product improvement makes specifications subject to change without notice. See Halsey Taylor website for most current spec sheet.

Manufacturer Info

Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
View More

Data Sheets

Additional Information

Part #

138095

Manufacturer

Halsey Taylor

Model #

HTHB-LR

Is Complete

Yes

GreenSpec

No

ADA Compliant

Yes

Freeze Resistant

No

Outdoor Rated

No

Refrigerated

No

Vandal Resistant Bubbler

No

Height

40.8125”

Width

19.75”

Depth

3”
