Features and Benefits

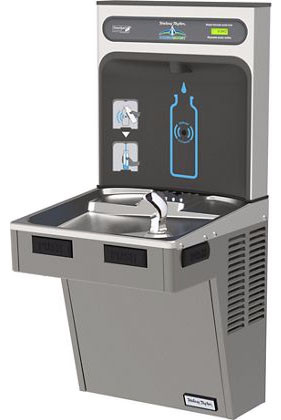

HydroBoost Bottle Filling Station: Sensor-activated enhanced with user interface graphics. Quick fill rate is 1.1 gallons per minute on refrigerated model and 1.5 gallon per minute on non-refrigerated model. Laminar flow provides a clean fill with minimal splash and easy maintenance. Equipped with an automatic 20-second shut-off timer.
Silver Ion Anti-Microbial Protection: Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew.
Green Counter: Visually displays count of plastic bottles saved from landfills. (Based on 20 oz. bottles for refrigerated models)
Double Bubbler: Features an exclusive one-piece, chrome plated two-stream mound-building bubbler with non-removable anti-squirt feature. It’s integral hood insures a satisfying drink of water.
Push bar Actuation Mechanism: Self-closing light-touch push bars on front and sides with raised letters for the visually impaired.
Automatic Stream Height Regulator: Self-closing assembly is located inside unit to prevent tampering. Unit resists corrosion and liming. A constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi.
Inlet Strainer: Easily cleaned in-line strainer screen traps particles of 140 microns or larger before they enter the waterway.
Water Inlet: 3/8” O.D. tubing
Drain Outlet: 1-1/4” tube outlet for 1-1/4” slip joint connection. Trap and service stop not included.
Refrigerated System
Hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer and self-lubricated fan cools copper/ aluminum condenser. System uses R-134A refrigerant. Protected by Halsey Taylor’s Limited 5 Year Warranty.
Suggested Specifications
Unit shall include a single water cooler with a bottle filling station. Model HTHB-HAC8 shall deliver 8 gph of 50°F drinking water at 90°F ambient air and 80°F inlet water. Model HTHB-HACD shall deliver non-refrigerated drinking water. Lower Unit shall have mechanically activated pushbar activation. Bottle Filler shall include electronic sensor for no-touch activation with automatic 20-second shut-off timer. Shall include a Green Counter™ displaying the count of plastic bottles saved from the landfill. Shall provide 1.1-1.5 gpm with laminar flow to minimize splashing. Shall include anti microbial protected plastic components to prevent mold and mildew. Cooler shall have stainless steel basin with anti-splash ridge and removable drain strainer. Shall have front and side pushbar activation with raised letters. Shall comply with ADA guidelines for visual and motion disabilities. The manufacturer shall certify the unit to meet the requirements of NSF/ANSI 61 and 372, UL 399 and CAN/CSA 22.2 No. 120
Manufacturer Info
Halsey Taylor offers outdoor water coolers, water coolers for schools, parks and shopping centers, floor-mounted and wall-mounted coolers, and fountains in a variety of shapes and styles. Our durable and attractive finishes further reflect our concern for our products appearance, as well as their ability to withstand the test of time.
