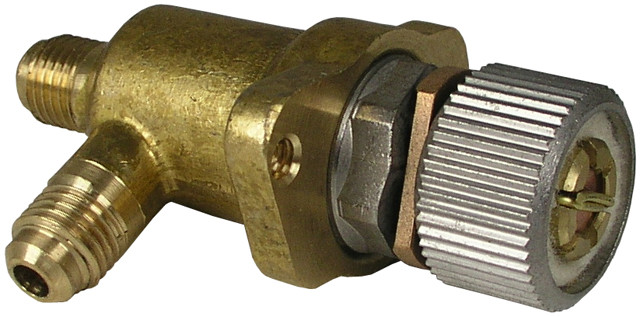

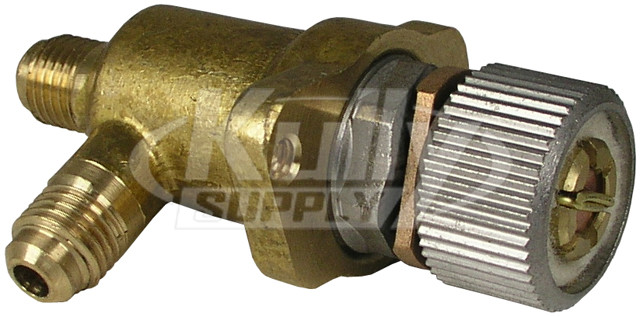

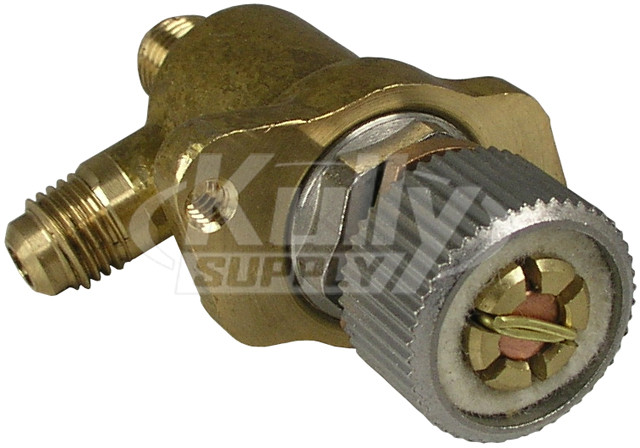

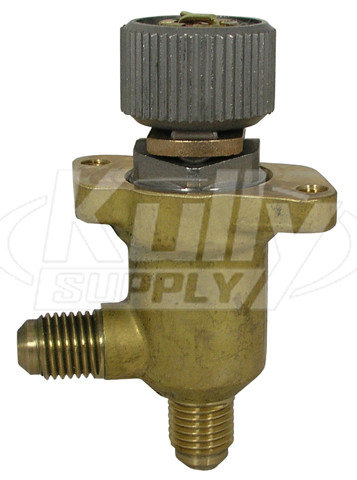

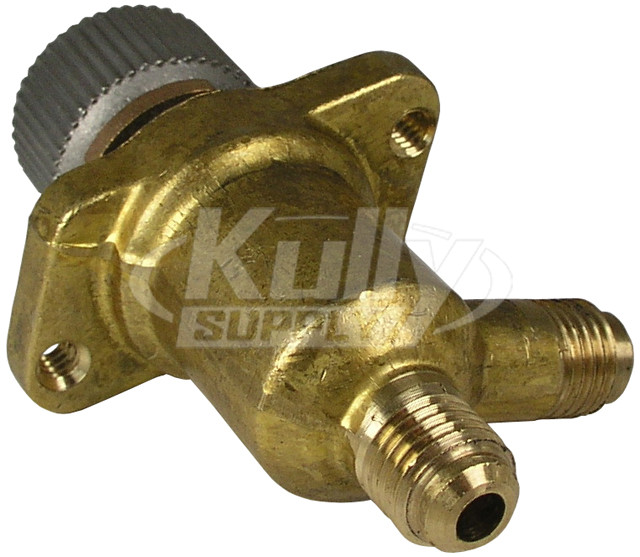

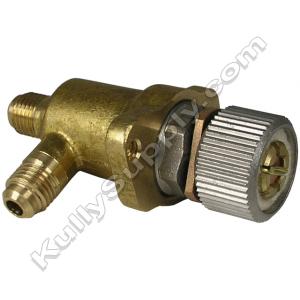

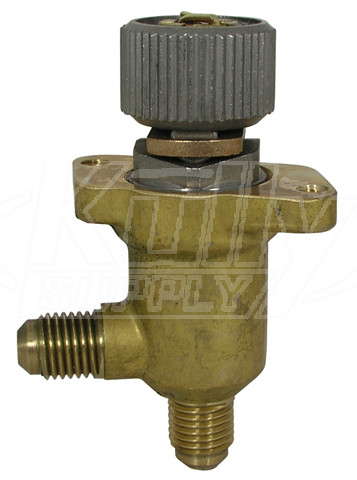

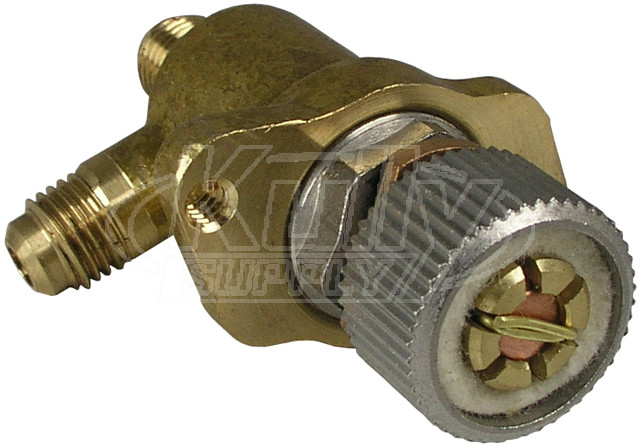

Oasis 032046-001 Valve Body and Stem Assembly

Oasis 032046-001 Valve Body and Stem Assembly

Model #: 032046-001
Part #: 102581
Manufacturer: Oasis

The Oasis 032046-001 Valve Body and Stem Assembly is found on Oasis PAM series drinking fountains behind the front push bar. When the user presses the push bar, it presses against the clamp(#102797) which is attached to the valve stem and twists the stem. As the valve stem twists it moves the valve gasket away from the seat and allows water to flow.

Money Back Guarantee

Price:

$58.79

Qty:

Availability: In Stock

Shipping Info

Need Product Assistance?

800-518-5388 -or-

Part #:: 102581
Manufacturer:: Oasis
Model #:: 032046-001

Packaging:: Bagged
Color:: Gold, Silver, Black
Dimensions:: L: 2-7/8”
Material / Construction:: Metal, Rubber
Weight:: 0.40 lbs
Items Included:: Valve Body & Stem Assembly

The valve does NOT adjust the amount of water. The regulator (#102579) controls the amount of water.

When you have water that continues to flow out of the bubbler head after you release the push bar, this valve is the cause. A common problem occurs when a small piece of sediment gets between the valve stem and valve body. The sediment will create a small gap in the seal between the valve stem and body, allowing water to continuously flow. Once this happens, it won’t take long for the water to erode a groove in the valve body. If this occurs, you must replace this valve assembly.

Manufacturer Info

OASIS International has become the global leader in the design, manufacture, and distribution of clean drinking water systems. Oasis develops water-friendly solutions that provide clean and safe drinking water for everyone.

Questions on Oasis 032046-001 Valve Body and Stem Assembly

From kevin at 3/11/13 11:37 AM
- Q: how to take stem out of oasis 030774-014
- A: The stem is threaded into the valve body. To remove the stem use a wrench on the stem and turn counter-clockwise. Sometimes they are tough to remove due to sediment build up on them. If you are unable to remove the valve stem you may need to get a new valve body and stem assembly.
- Do you find this question helpful? Yes No

Ask Your Own Question

Submit your question(s) below or for immediate assistance, pleace call us at 800-518-5388 or use our Live Chat during business hours.
